Medium Duty Finger Protector Hinge Guard Cover – For Pull Side (Knuckle Side) Fitting – 1950mm Length

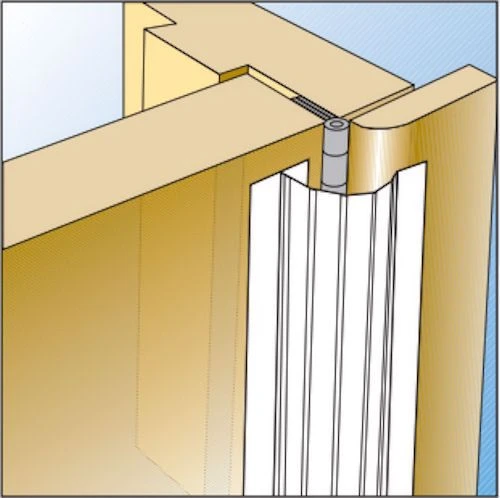

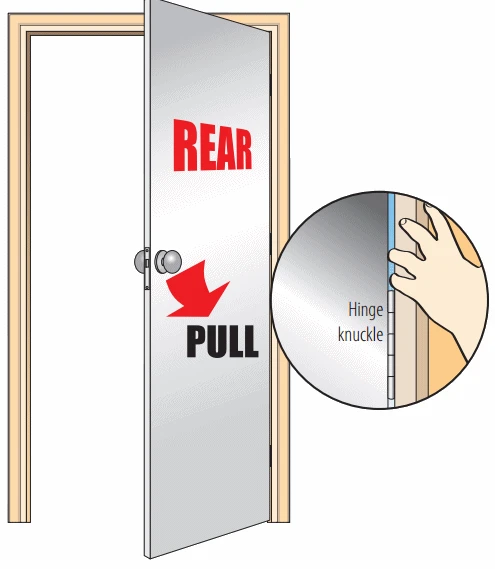

• Medium duty finger protector hinge guard – for rear opening pull side fitting (knuckle side).

• Hinge guards provide finger protection for doors which are simple and cost effective devices that cover the gaps created when doors are opened.

• These devices fit most doors and are simple to install.

• Finger protectors are unobtrusive, and will in no way impede the opening and closing of any door.

• Slim-line design – once fitted it is hardly noticeable.

• Suitable for areas of medium pedestrian traffic.

• Improves acoustic and draft proofing performance.

• Can be screw fixed to allow easy hinge maintenance, easy to install, no specialist tools or equipment required.

• Supplied with high performance self adhesive tape.

• Easy to clean and requires no maintenance.

• Medium duty front push side fitting hinge guard also available see related products or search for 40899.



Finishes:

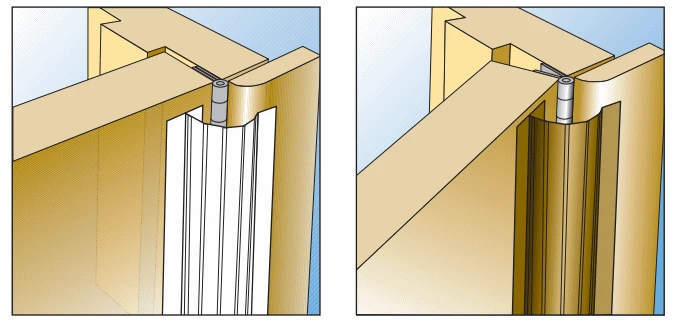

• White PVC

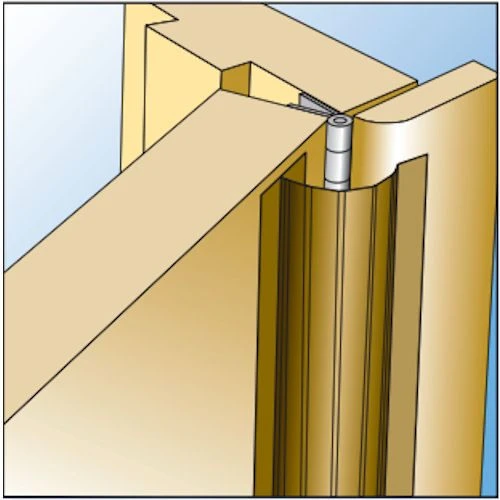

• Brown PVC

• 1.95 metre (1950mm) lengths.

• Easily cut to length for smaller door sets.

Areas of application:

• Suitable for fire rated and non fire rated doors.

• Suitable for timber, steel or composite doors.

• Suitable for doors with a maximum opening angle of 105 degrees.

• Ideal for nurseries, schools and residential care homes



Fitting Instructions:

• Clean the door and the door frame thoroughly.

• It is essential that surfaces are clean and free from silicone or polish.

• The flexible cover has self adhesive strip on faces which attach to the door and door frame.

• Measure door height and trim flexible cover if necessary.

• Allow a gap of 10mm at top and bottom of door.

• Before fitting you should remove the pink cover from adhesive strip.

• Ensure adhesive is firmly pressed into place.

• For easy maintenance screw fix channels at 400mm centres.

• Each pack contains: 1 x Channel. (screws not supplied).
