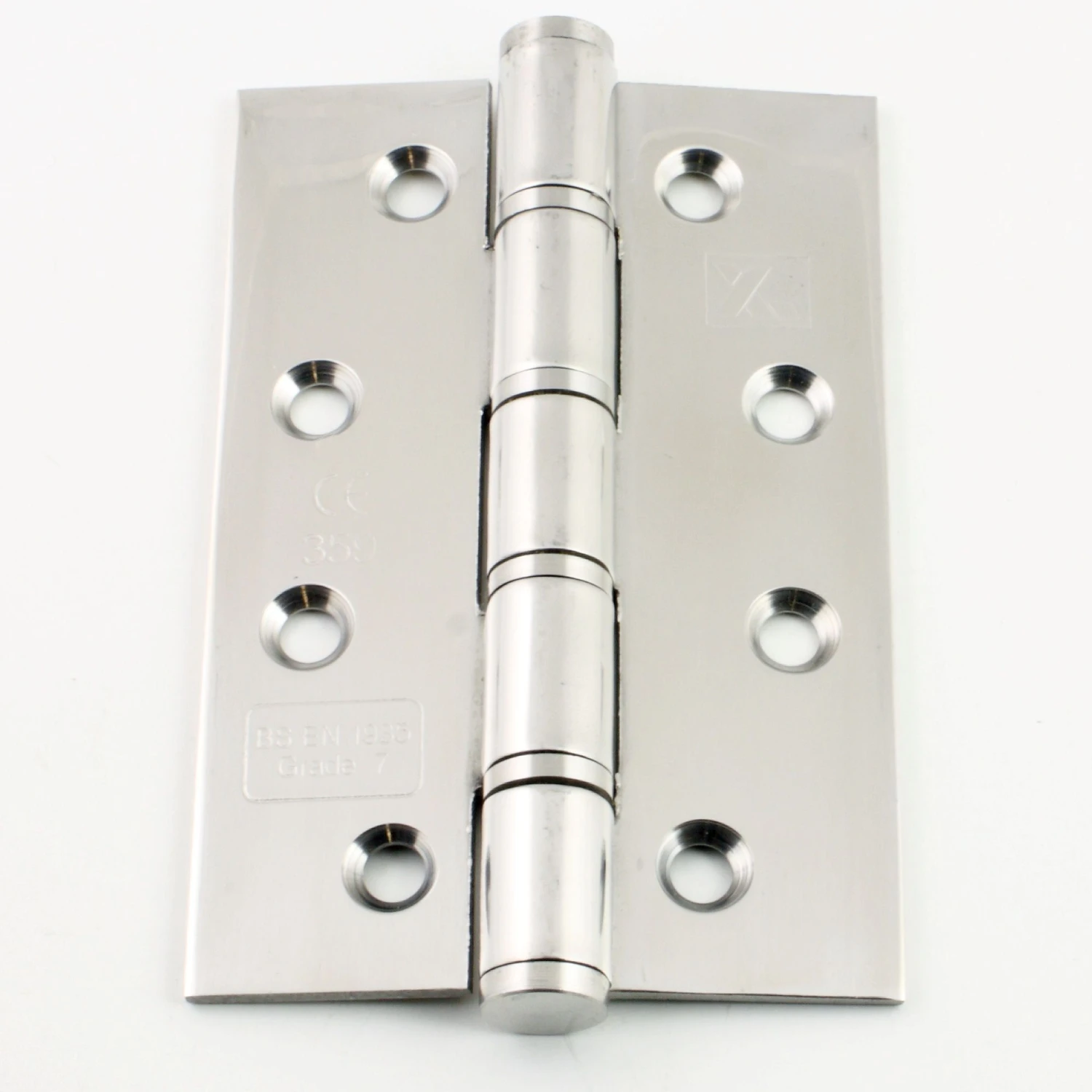

Narrow Leaf Washered Hinges – Grade 7 – Fire Rated – 40kg Weight Limit – Polished Stainless Steel – 102mm X 67mm

• Narrow leaf washered hinges.
• Slim leaf design allows these hinges to be used on both 35mm and 44mm thick doors.
• Polished satinless steel
• One hour fire rated hinges suitable for use on internal fire doors FD30 and FD60 rated.
• Tested and passed to the British / European standard BS EN 1935 suitable for use on fire doors up to 40kg in weight

Finish

• Polished stainless steel

Dimensions

	40879.1	Dimension On Diagram
Height (H)	102mm	A
Width (W)	67mm	B
Leaf Width	28mm	C
Thickness	2mm	N/A

Standards This Product Conforms To

• Tested and passed to BS EN 1935* the British / European standard requirements and testing methods covering single axis hinges. Classification number – 2-7-2-1-1-4-0-7.

• *To meet this standard 2mm thick intumescent liners should be fitted behind each leaf of the hinge.

• Tested and passed to BS EN 1634 the British / European standard for determining the fire resistance of door and shutter assemblies including hardware. These hinges have been assessed for use on 30 minute and 1 hour timber fire doors FD30 / FD60.

• CE Marked / UKCA Marked



Useage

• Suitable for use on 35mm –  44mm thick wooden doors

• To pass fire regulations three hinges must be fitted per door (pair and a half).

Unit Of Sale

• The 40879.1 hinges are sold and priced in pairs (2 hinges) and come supplied with fixing screws.
