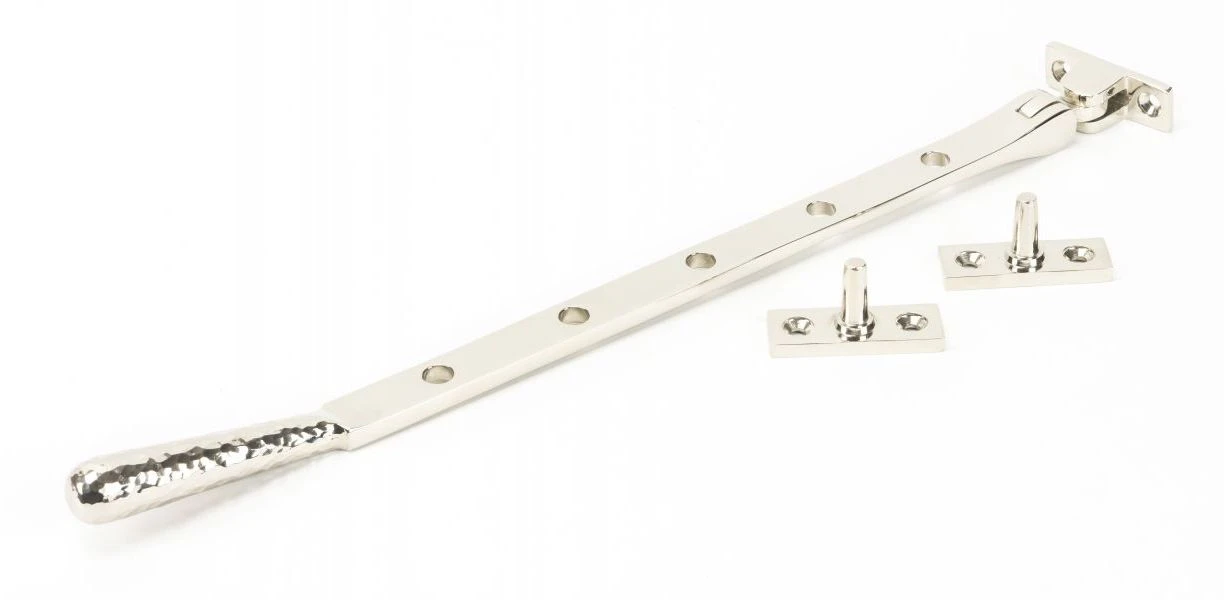

Newbury Hammered Pattern Window Stay – Available In Three Sizes – Polished Nickel

• The Newbury hammered range of products are meticulously hand-hammered by skilled craftsmen
• The textured surface this creates is well suited to a wide variety of settings

• Heavy weight pattern

• Hand-hammered end design handle

• A casement stay is the handle or “arm” that fixes to the bottom of the window to help push the window open and pull the window closed

• The casement arm sits on pins this makes the window “stay” in position when in the open or closed position

Finish

• Polished Nickel

Dimensions

Available in three lengths

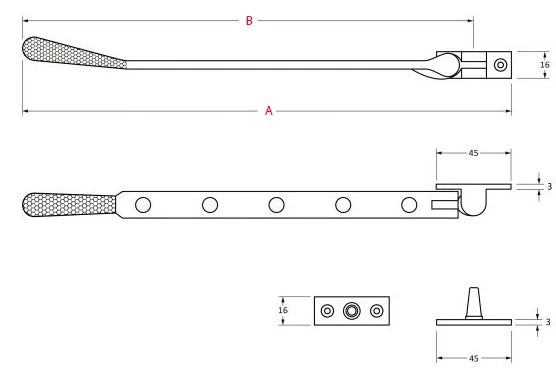

– Overall Size A On The Above Diagram

• 249mm Overall Length (8 Inches) – 49045.1
• 296mm Overall Length (10 Inches) – 49045.2
• 335mm Overall Length (12 Inches) – 49045.3

 – Stay arm B On The Above Diagram

• 228mm – 49045.1
• 275mm – 49045.2
• 314mm – 49045.3

Important Info Before You Buy

• Suitable for use on wooden windows

• Suits standard outward opening casement windows

• Comes supplied with fixing screws and two standard pins

• Designed to match the Newbury window espags in the range
