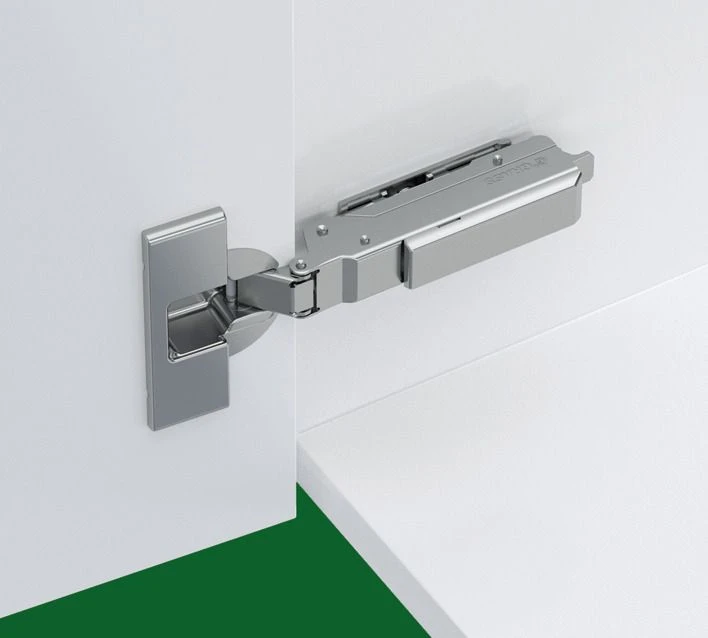

Overlay Hinge With Soft Close For Up To 36mm Thick Doors (And Up To 19mm Overlay) + 0mm Mounting Plate

• High quality concealed blum style full overlay kitchen cabinet hinge, with built in soft close mechanism and 3 way adjustable clip on mounting plate.

• For use with doors that overlay the carcass only. (Overlay doors sit on top of cupboard door frame.

• High architectural quality “clip on” design with built in soft closing device. No more slamming cupboard doors, just a gentle push and the cabinet door will self close coming to a controlled soft stop.

• 3 way adjust-ability the door can be adjusted vertically (moving the door up and down) – horizontally (moving the door side to side) – in and out (moving the door from or towards the carcass)

• Sprung hinge – keeps door held closed no need for any kind of cupboard catch.

• Standard 35mm diameter cup with a 95 degree opening angle

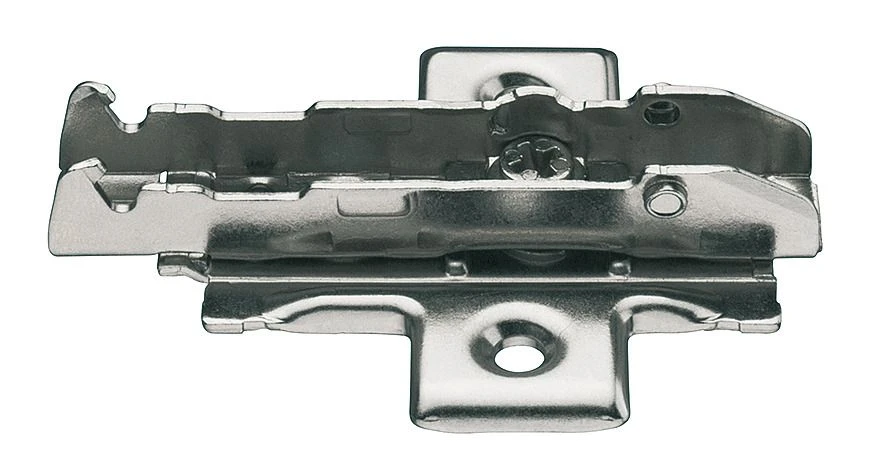

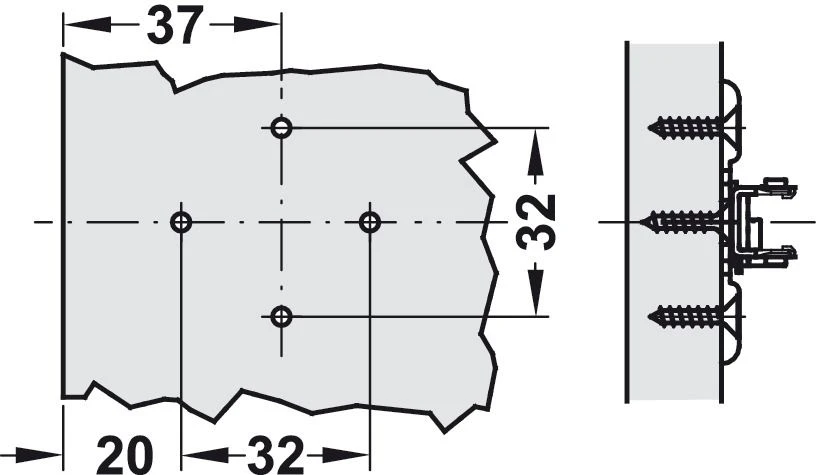

• Comes supplied adjustable clip on mounting plate.

Suitable For Use On Overlay Style Doors Only

• Overlay hinge suitable for doors that sit on top of the cabinet carcass.

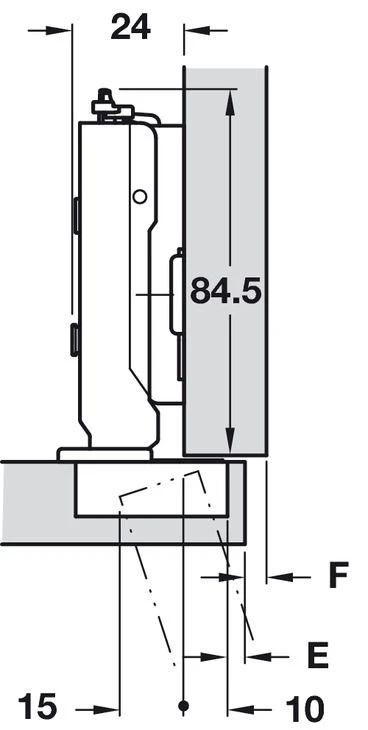

• Below diagram shows how an overlay hinge is fitted. – (Notice how the door sits in front of the cupboard frame.)

Clip On Design

• This hinge comes supplied with an adjustable clip on mounting plate, which allows the door to be fully adjusted and then quickly removed by simply pushing a small button at the very tip of the hinge.

• Below diagram shows how the concealed blum style hinge clips on and off from the mounting plate.

Base Material

• Made from steel.

Finish Details

• Bright zinc plated.

3 Way Adjustable Hinge

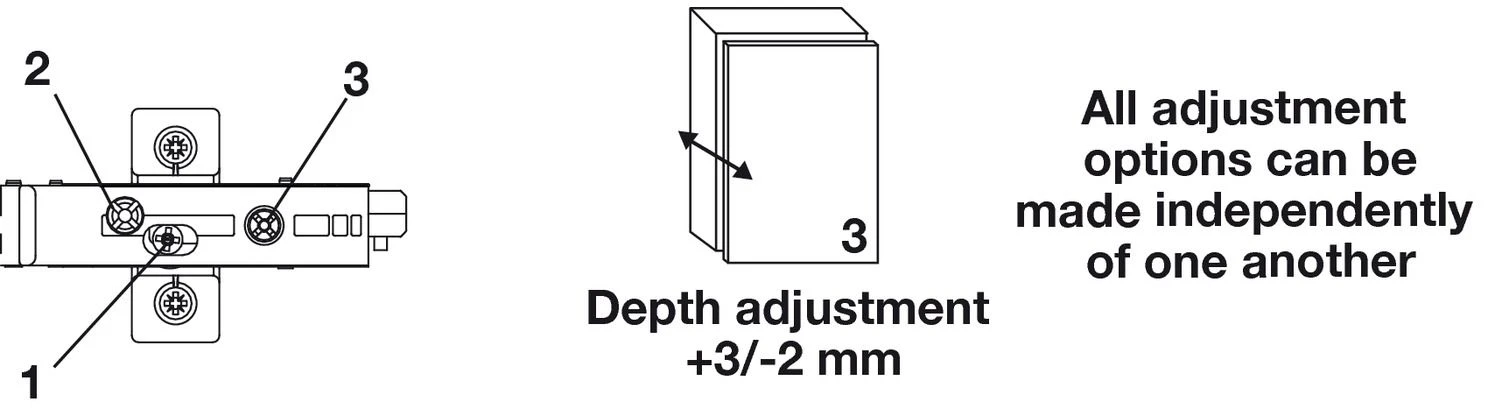

• This overlay hinge can be adjusted in 3 directions. – (see below diagram.)

• Lateral adjustment – turning the screw nearest to cup allows the door to move side to side with a total movement of 5mm possible.

• Front to back adjustment – turning the screw at the tip of the hinge adjusts the door away from or toward the carcass with a total movement of 3.5mm possible.

• Vertical adjustment – turning the cam operated screw on the mounting plate adjusts the height the of the door up and down with a total movement of 4mm possible.

Size Details

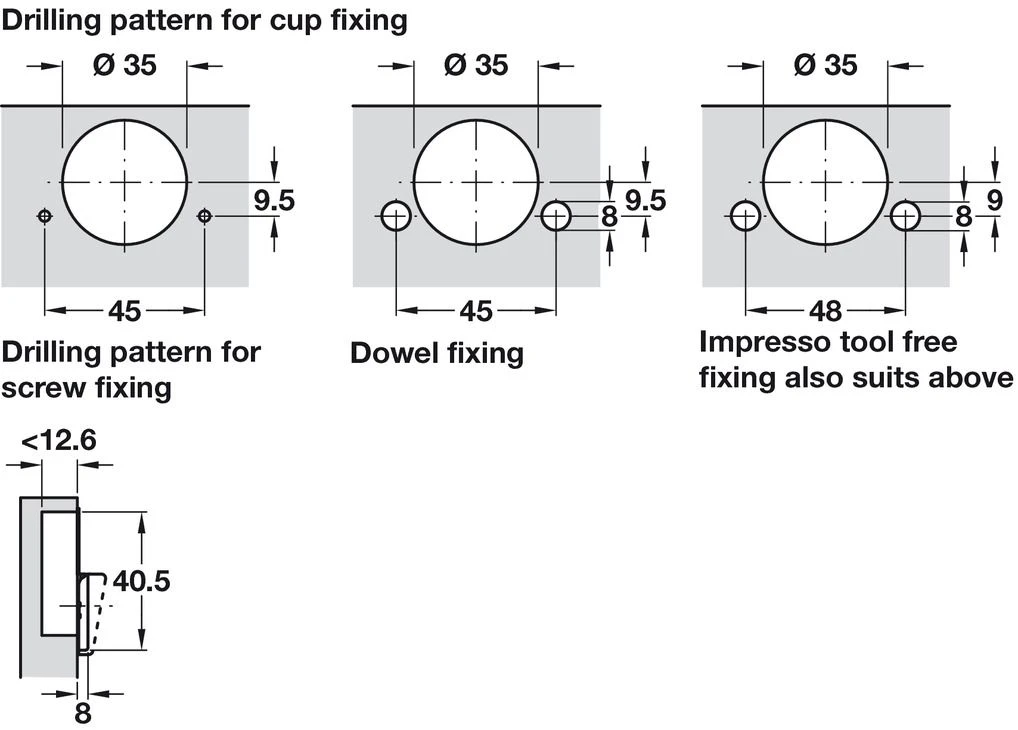

• Standard 35mm diameter cup. (Hole diameter required to be drilled into the door.)

• 95 Degree opening angle.

Unit Of Sale

• The overlay concealed blum style cabinet hinge is sold individually. – (Each)

• Comes supplied with adjustable clip on mounting plate and  screws to suit 18mm thick door and carcass.
