Parliament Projection Hinges – Matt Bronze (Lacquered)

• Matt bronze finish parliament projection hinges, ideal for double doors.

• Hinges allow doors to fold back on them self through 180 degrees.

• Suitable for medium weight internal and external doors.

Finish

• Matt bronze.

Dimensions

Available in 3 Sizes

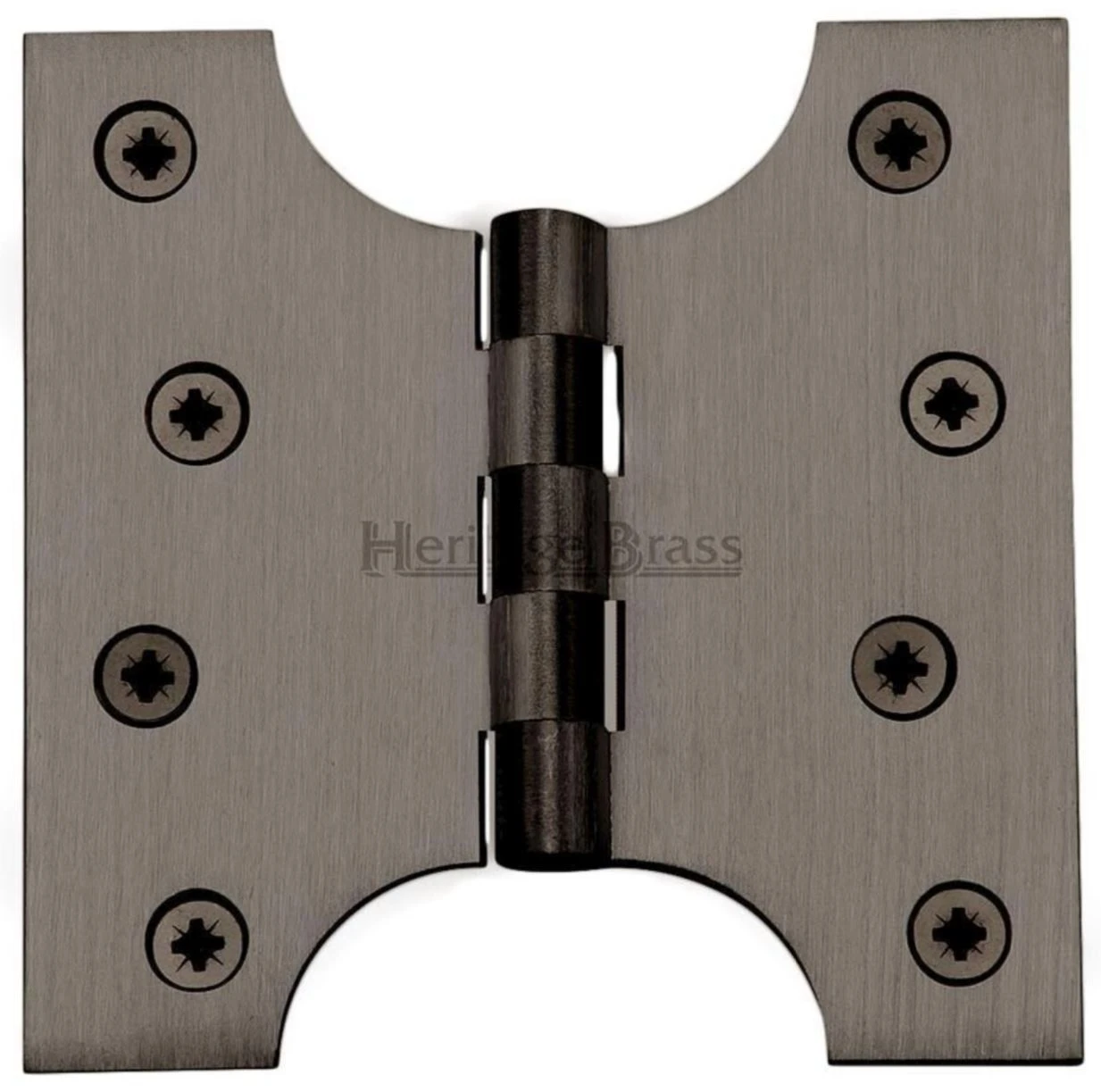

43450.1 – 102mm x 102mm x 4mm – (50mm Projection)

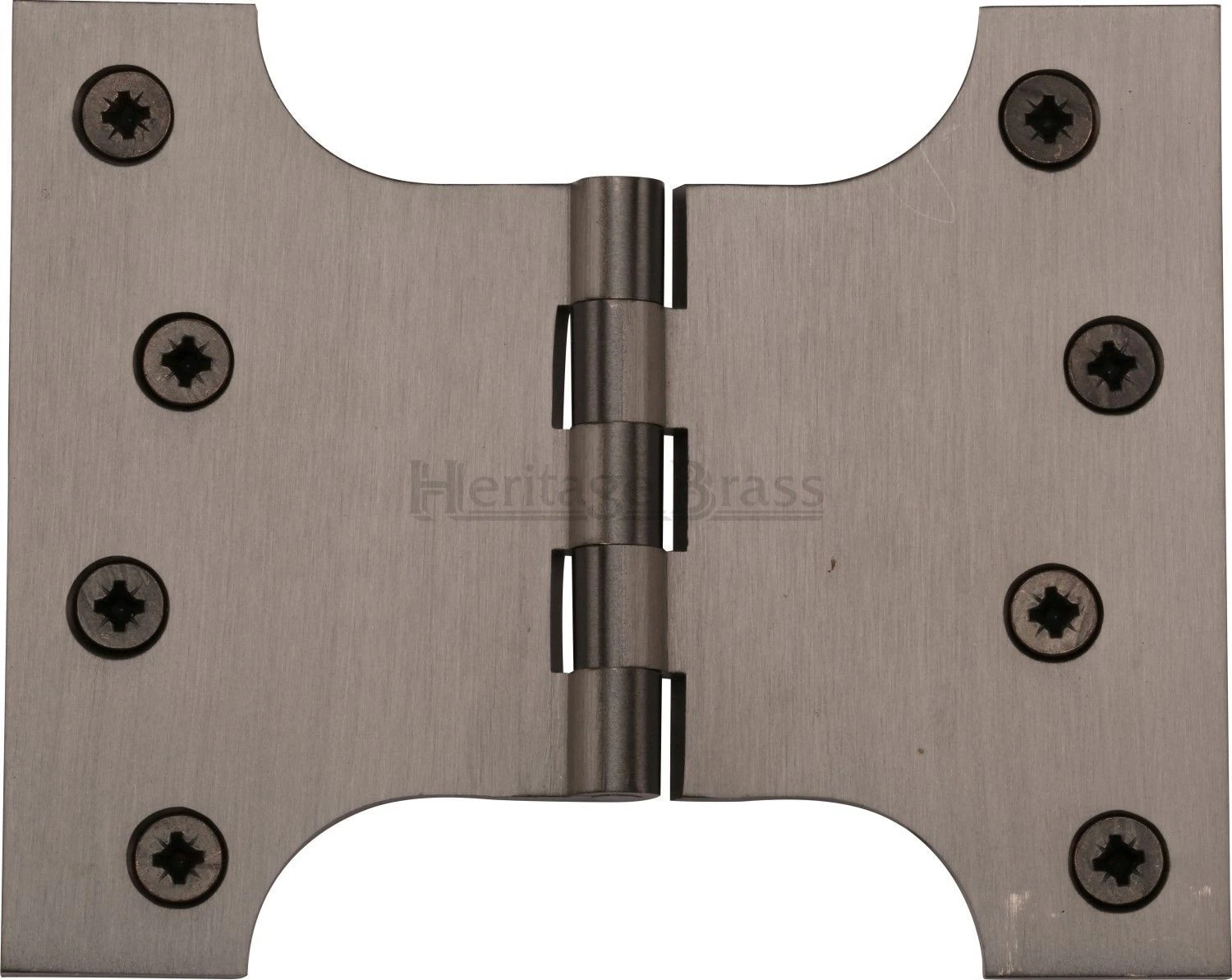

43450.2 – 102mm x 127mm x 4mm – (76mm Projection)

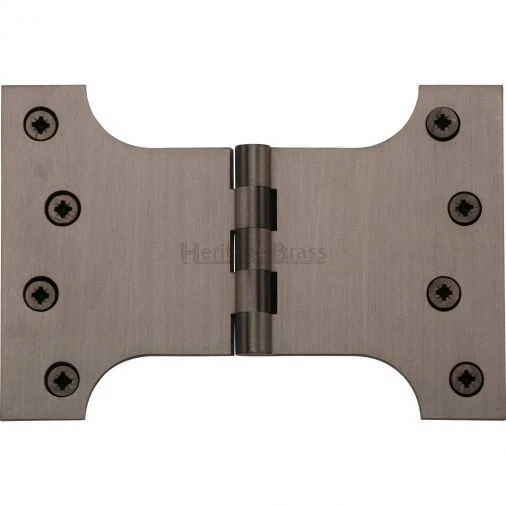

43450.3 – 102mm x 152mm x 4mm – (102mm projection)

	43450.1	43450.2	43450.3	Dimension On Diagram
Height	102mm	102mm	102mm	A
Width	102mm	127mm	152mm	B
Leaf Width	26mm	26mm	26mm	C
Projection given	50mm	76mm	102mm	D
Thickness	4mm	4mm	4mm	N/A

Important Info Before You Buy

• Parliament hinges are used to help project or “throw” a door past an obstruction so it can fold back on itself through 180 degrees

• Suitable for wooden doors.

• Hinges have short knuckle and no washers, therefore only suitable for light – medium weight doors.

• Sold and priced in pairs and come supplied with screws.
