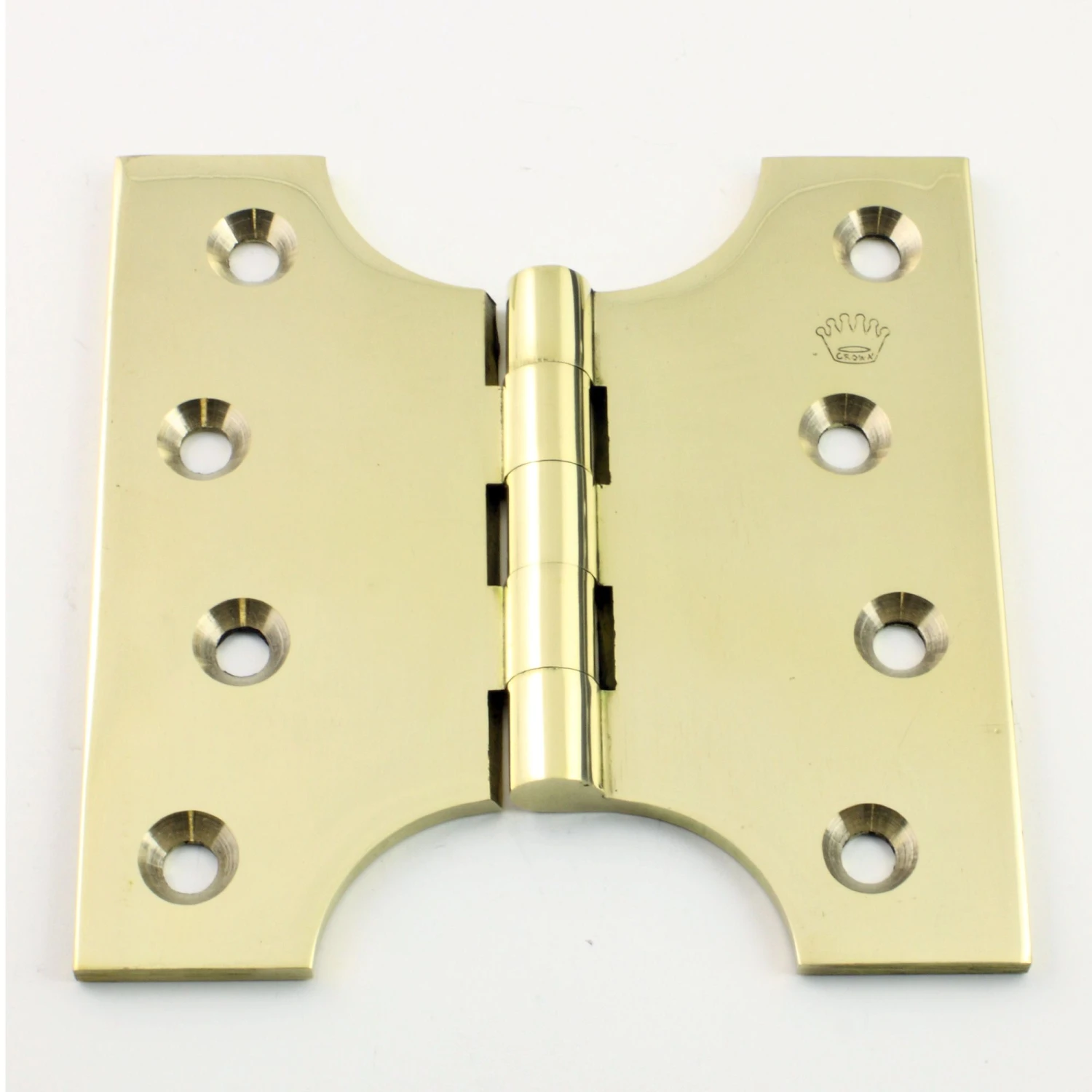

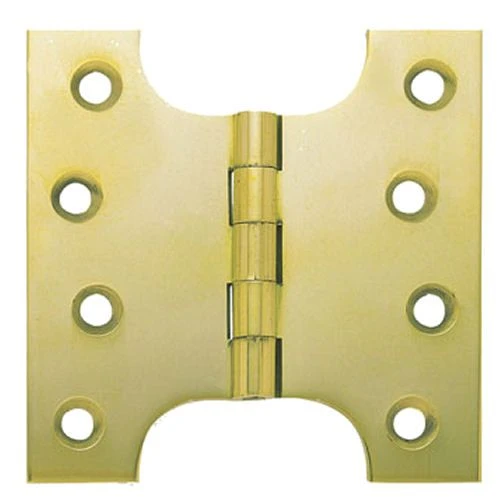

Parliament Projection Hinges – Polished Brass (Lacquered) – 102mm X 102mm / 102mm X 127mm / 102mm X 152mm

• Parliament projection hinges ideal for use on double doors

• Allows a door to fold back on itself through 180 degrees

• Suitable for internal or external doors

Finish

• Polished brass

Dimensions

Available in 3 Sizes

15011.1 – (102mm x 102mm x 4mm)

15011.2 – (102mm x 127mm x 4mm)

15011.3 – (102mm x 152mm x 4mm)

	15011.1	15011.2	15011.3	Dimension On Diagram
Height	102mm	102mm	102mm	A
Width	102mm	127mm	152mm	B
Leaf Width	26mm	26mm	26mm	C
Projection given	50mm	76mm	102mm	D
Thickness	4mm	4mm	4mm	N/A

Important Info Before You Buy

• Parliament hinges are used to help project or “throw” a door past an obstruction so it can fold back on itself through 180 degrees

• Suitable for wooden doors

• Base material is brass highly polished with lacquer protection

• Hinges have short knuckle and no washers, therefore only suitable for light – medium weight doors

• Sold and priced in pairs and come supplied with screws
