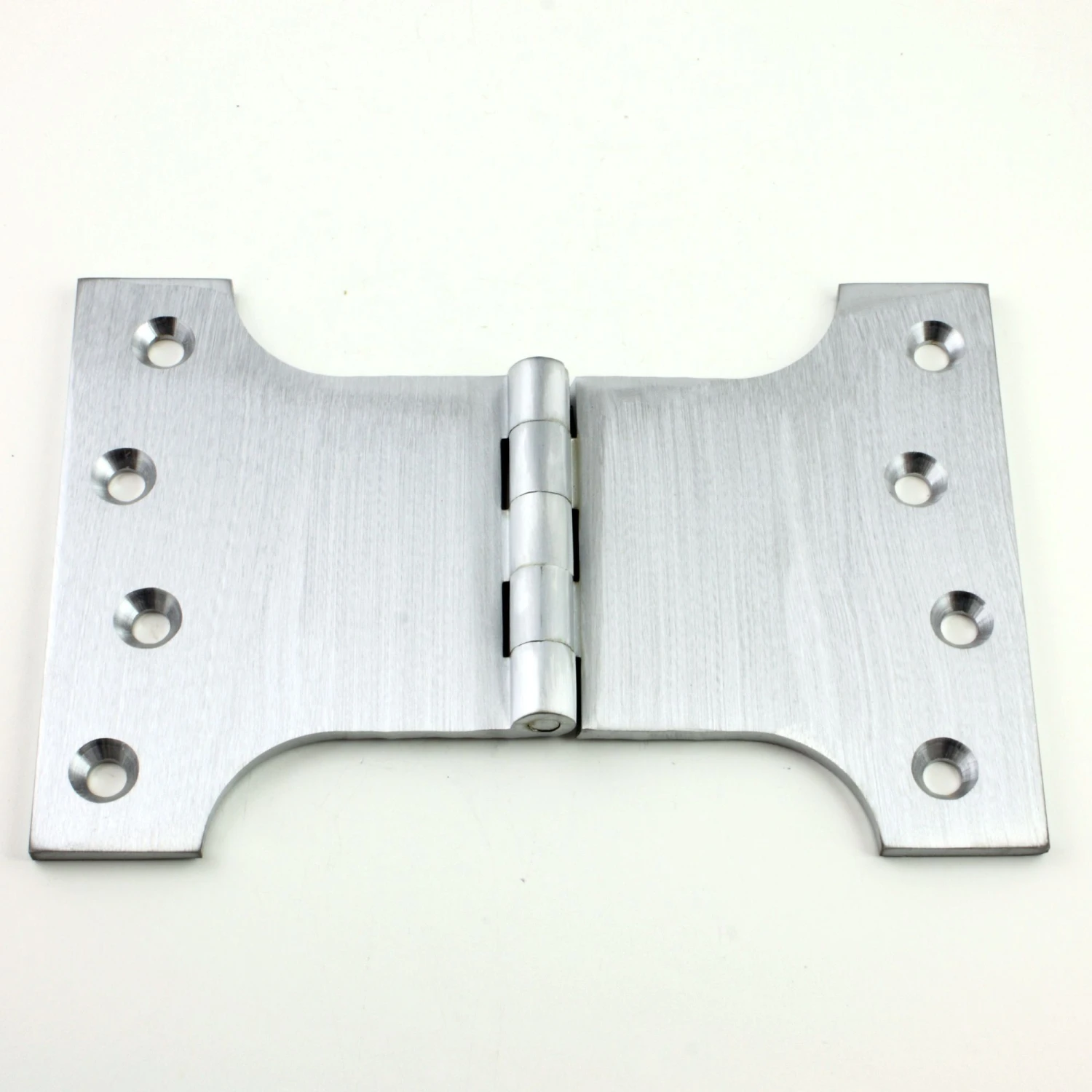

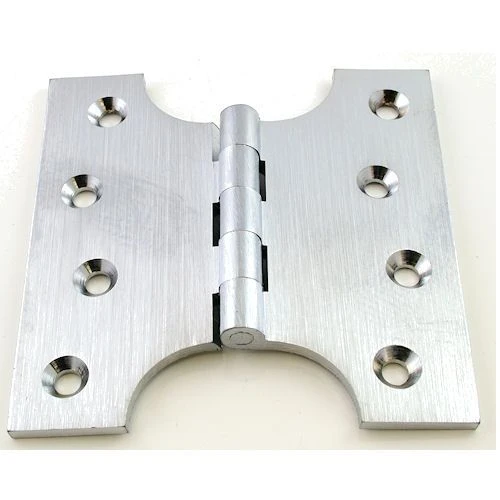

Parliament Projection Hinges – Satin Chrome – 102 X 102mm / 102 X 127mm / 102 X 152mm

• Parliament projection hinges ideal for double doors

• Allow doors to fold back on them self through 180 degrees

• Suitable for internal or external doors

Finish

• Satin chrome

Dimensions

Available in 3 Sizes

15012.1 – (102mm x 102mm x 4mm) – 50mm Projection

15012.2- (102mm x 127mm x 4mm) – 76mm Projection

15012.3 – (102mm x 152mm x 4mm) – 102mm Projection

	15012.1	15012.2	15012.3	Dimension On Diagram
Height	102mm	102mm	102mm	A
Width	102mm	127mm	152mm	B
Leaf Width	26mm	26mm	26mm	C
Projection given	50mm	76mm	102mm	D
Thickness	4mm	4mm	4mm	N/A

Important Info Before You Buy

• Parliament hinges are used to help project or “throw” a door past an obstruction so it can fold back on itself through 180 degrees

• Suitable for wooden doors

• Base material is brass that has been polish chrome plated

• Hinges have short knuckle and no washers, therefore only suitable for light – medium weight doors

• Sold and priced in pairs and come supplied with screws
