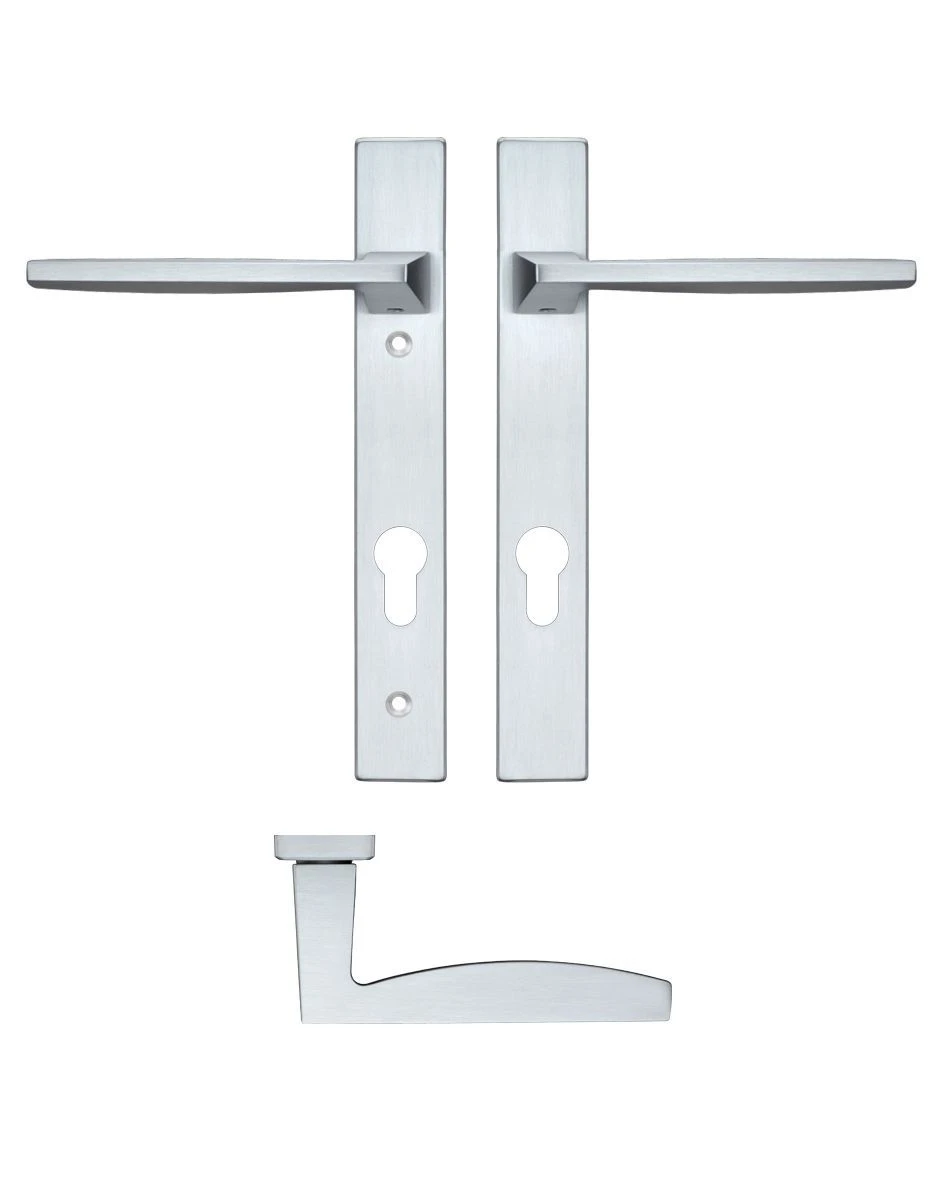

Pavo Multi Point Door Lever Handles – 92mm Euro Centres – 122mm Bolt Centres – 220mm X 32mm Back Plate – Satin Chrome

• Satin Chrome plated finish door handles.

• Designed for use with multi-point locking systems on timber, uPVC and composite doors.

• The handles are designed for use on external doors including front door, back doors and French patio doors.

• Lift handle to lock system designed to work with the majority of new multi-point locking systems.

• Standard 92mm Euro profile centres.

• 122mm fixing bolt centres.

• 220mm x 32mm backplate.

Operation

• Lever handle on either side of the door.

• Lift handle to lock.

Base material

• Zinc base

Finish

• Satin Chrome



Alternative Finishes Available

• Polished chrome.

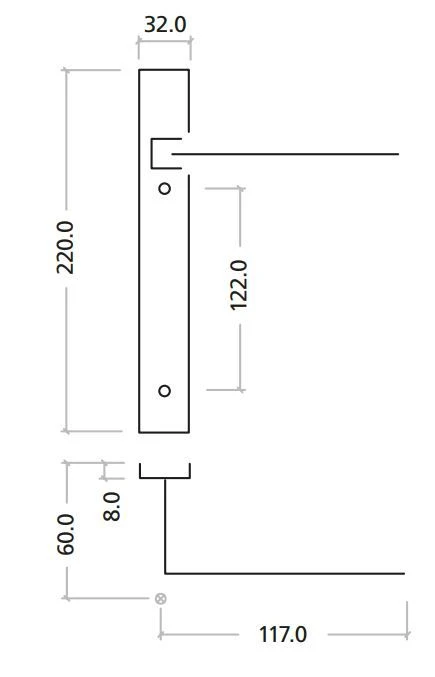

Dimensions

Item Code	Euro Profile Centres	Bolt Hole Fixing Centres	Back Plate Size
44003.1	92mm	122mm	220mm x 32mm

Standards This Product Conforms To

• Suitable for domestic use

• Suitable for commercial use



Unit Of Sale

• Pair – (1 x left hand and 1 x right hand door handle).
