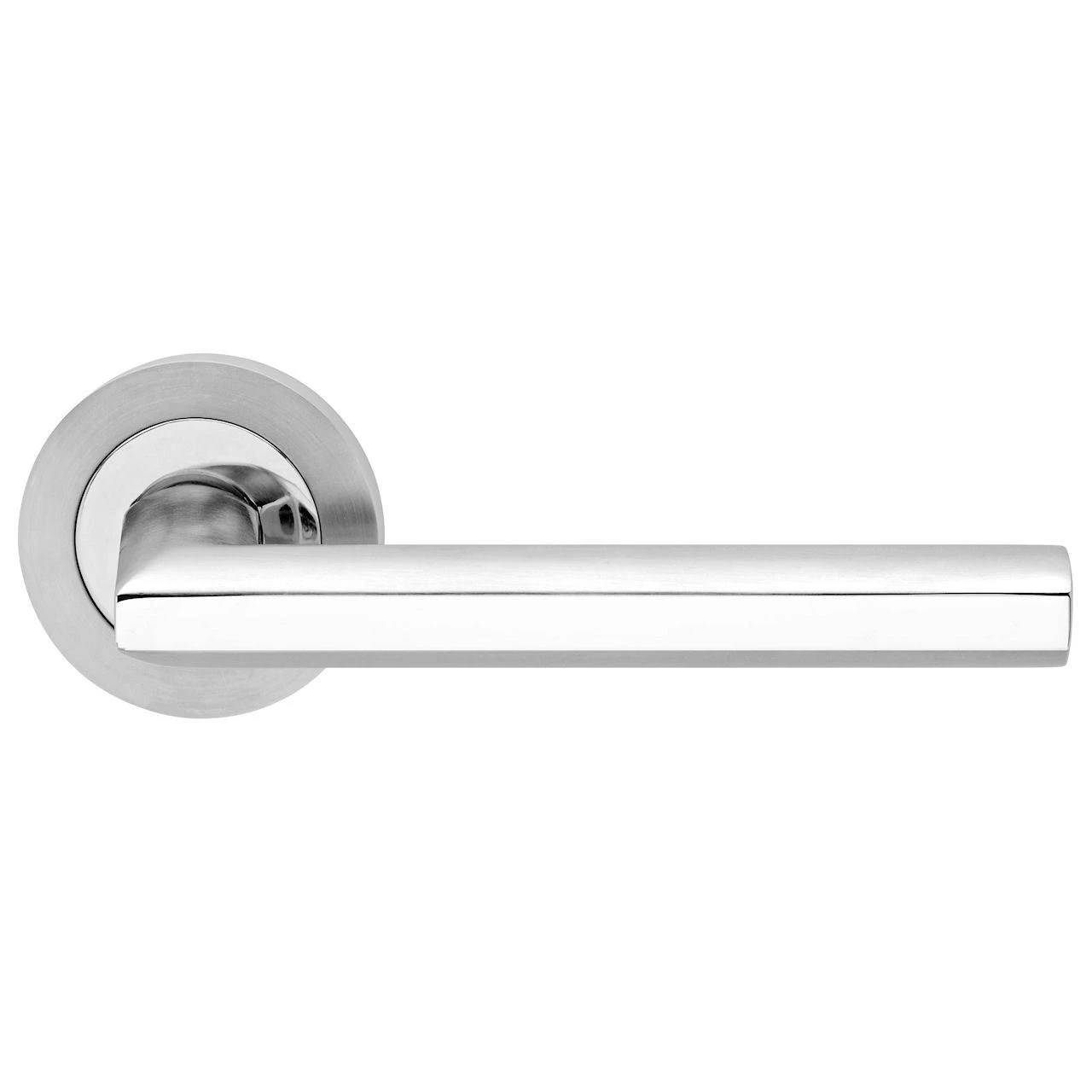

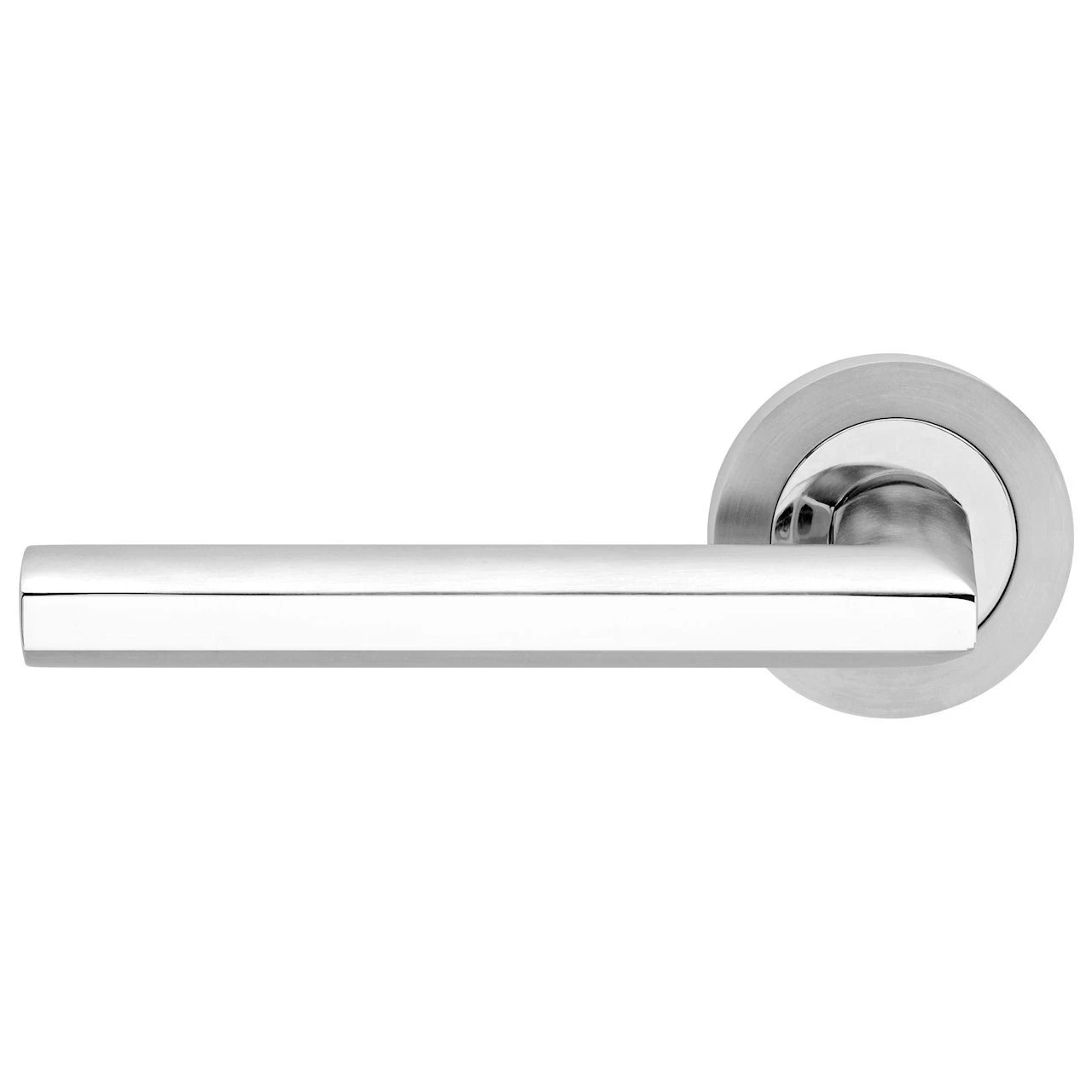

Porto – Round Rose Levers – Dual Finish Satin & Polished Stainless Steel

• A contemporary design dual design finish lever handle made from stainless steel.

• High architectural quality.

• Made from grade 304 stainless steel.

• Predominately satin (brushed) but with a polished (shiny) section running through the middle of the lever.

• Uses a patented design 3 piece rose fitting system to make these handles very strong once fitted to the door.

• Suitable residential or commercial use.

• Matching dual finish stainless steel accessories available including Standard escutcheons (keyhole covers), Euro profile escutcheons and a bathroom turn & release set.

How To Order Lever Handles With A Rose

• For Non-Locking Doors – 1 x (Pair) Lever Handles Only

• For Locking Doors – 1 x (Pair) Lever Handles Only + 2 x (Each) Standard Escutcheons

• For Euro Cylinder Locking Doors – 1 x (Pair) Lever Handles Only + 2 x (Each) Euro Escutcheons

• For Locking Bathroom Doors – 1 x Pair Lever Handles Only + 1 x (Set) Turn & Emergency Release

Matching Accessories

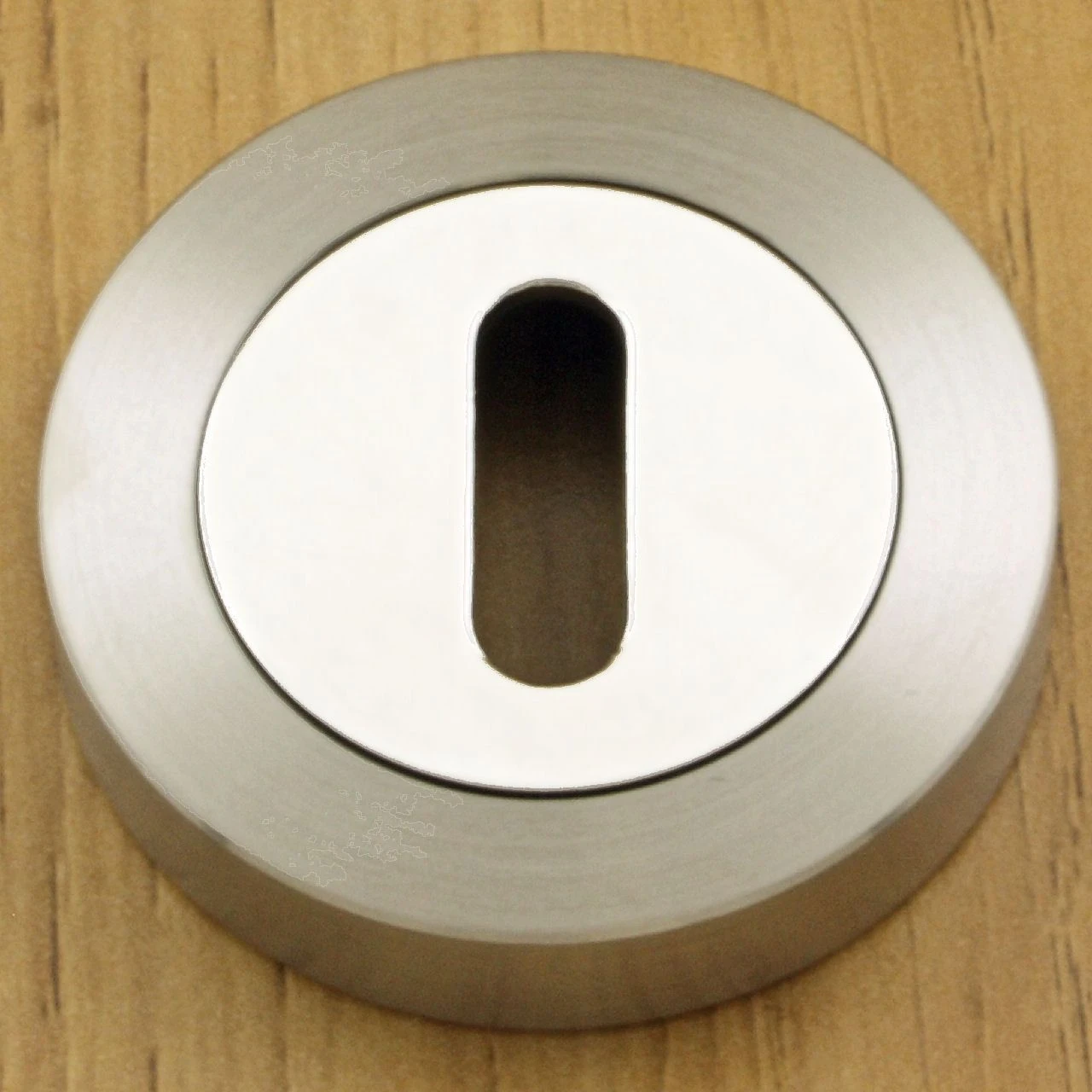

• Standard escutcheon – (key hole cover to suit regular “chubb style locks”) – 23049.1

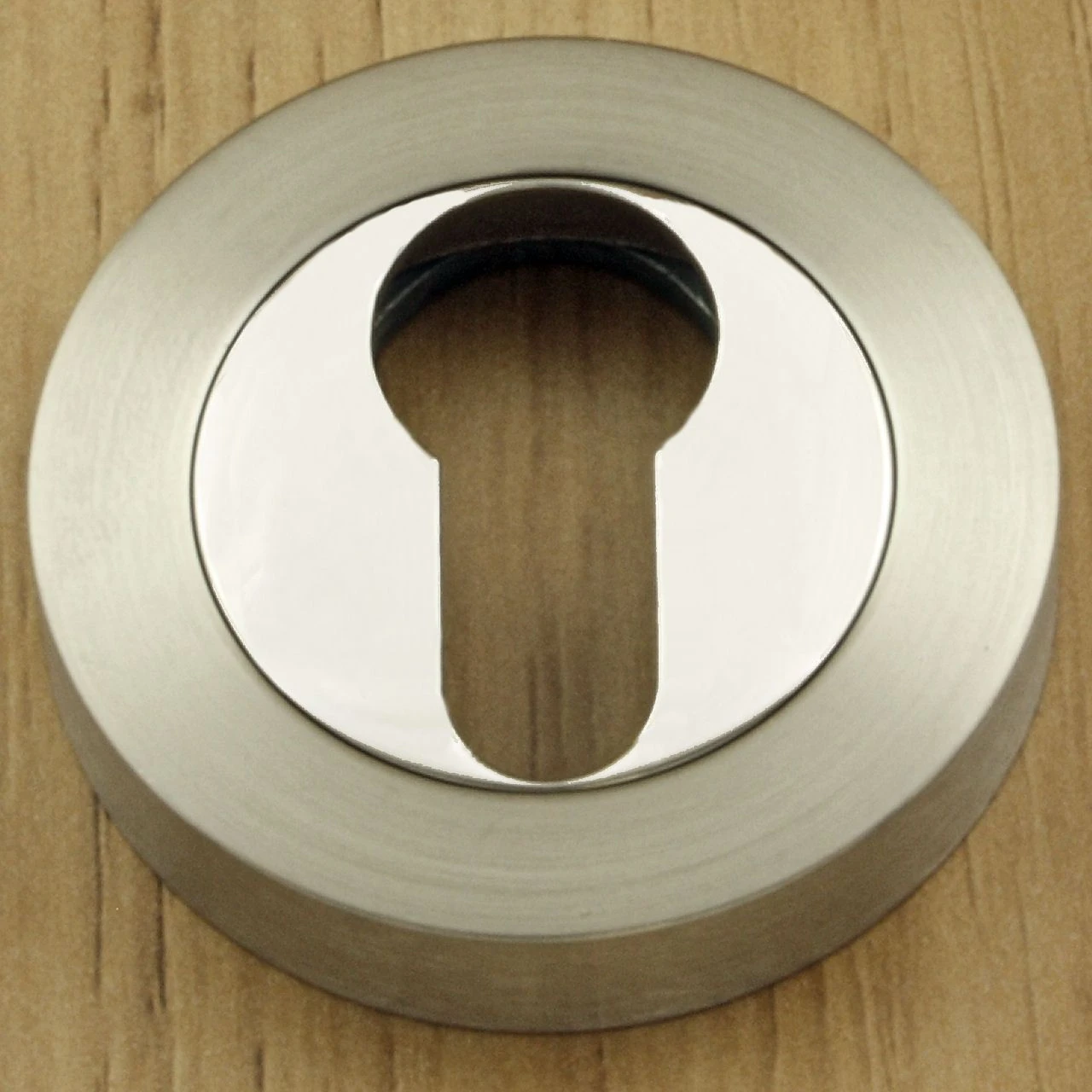

• Euro profile escutcheon – (key hole cover to suit euro profile cylinders) – 23055.1

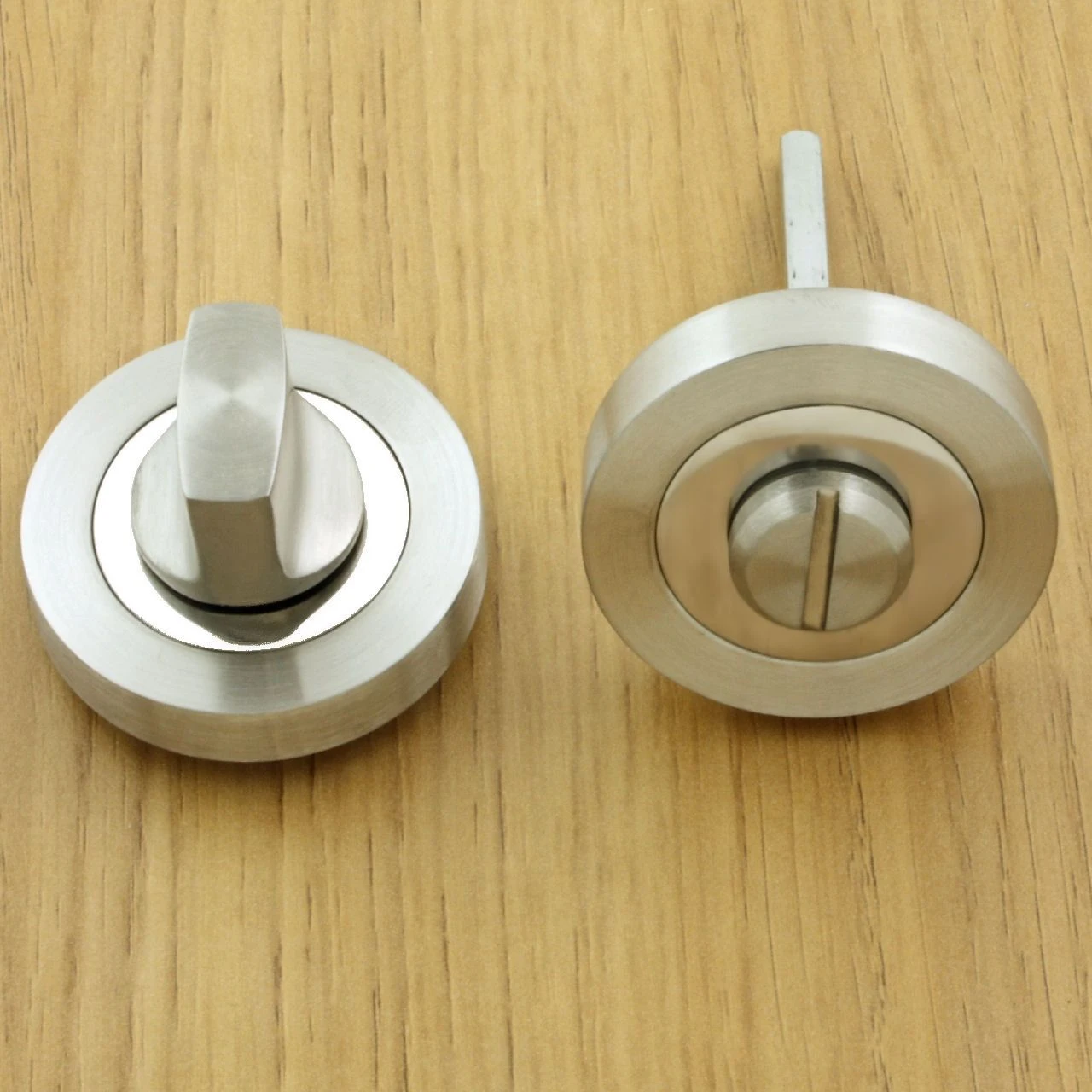

• Turn & emergency release – (a thumbturn used to lock bathroom doors, WC’s and toilet doors) – 15503.1

Base Material

• Made from grade 304 stainless steel.

Finish Details

• Dual finish – satin (brushed) stainless steel and polished (shiny) stainless steel.
• Satin stainless steel is a grey colour with very slight golden undertones which has been “brushed” to produce visible brush marks in the surface of the item.
• Polished stainless steel is a highly shiny mirror like finish with a very slight golden undertone. The raw stainless steel has been highly polished to produce a shiny mirror finish.

Operation

• Both levers are sprung to ensure the lever always returns to its starting position.

Size Information

• Rose Diameter – 52mm
• Rose Thickness – 10mm
• Lever Length – 129mm
• See technical information tab for diagram and further details.

Spindle Size

• 8mm x 8mm square – UK Standard.

Fixings

• Comes supplied with male and female bolt through fixings and 8mm spindle.
• Grub screw fixing to spindle for extra strength once fitted to the door.
• Lever is fitted to the door using a patented design 3 piece rose system.

Usage

• Suitable for residential or commercial use.
• Suitable for internal or external use.

Standards This Product Conforms To

•
  Successfully type tested to the all the requirements of the European performance standard BS EN1906 2002

• Category of use 3 – High frequency of use by public or others with little incentive to exercise with care and with a high chance of misuse.

Unit Of Sale

• Lever handles are sold in pairs. (One pair consists of 1x left hand and 1x right hand.)
• Escutcheons (key hole covers) are sold individually (each.)
• Turn and emergency releases are sold as a set (One set consists of a rose with a thumbturn fitted to the inside of the door and a rose with a coin slot fitted to the outside of the door.)
