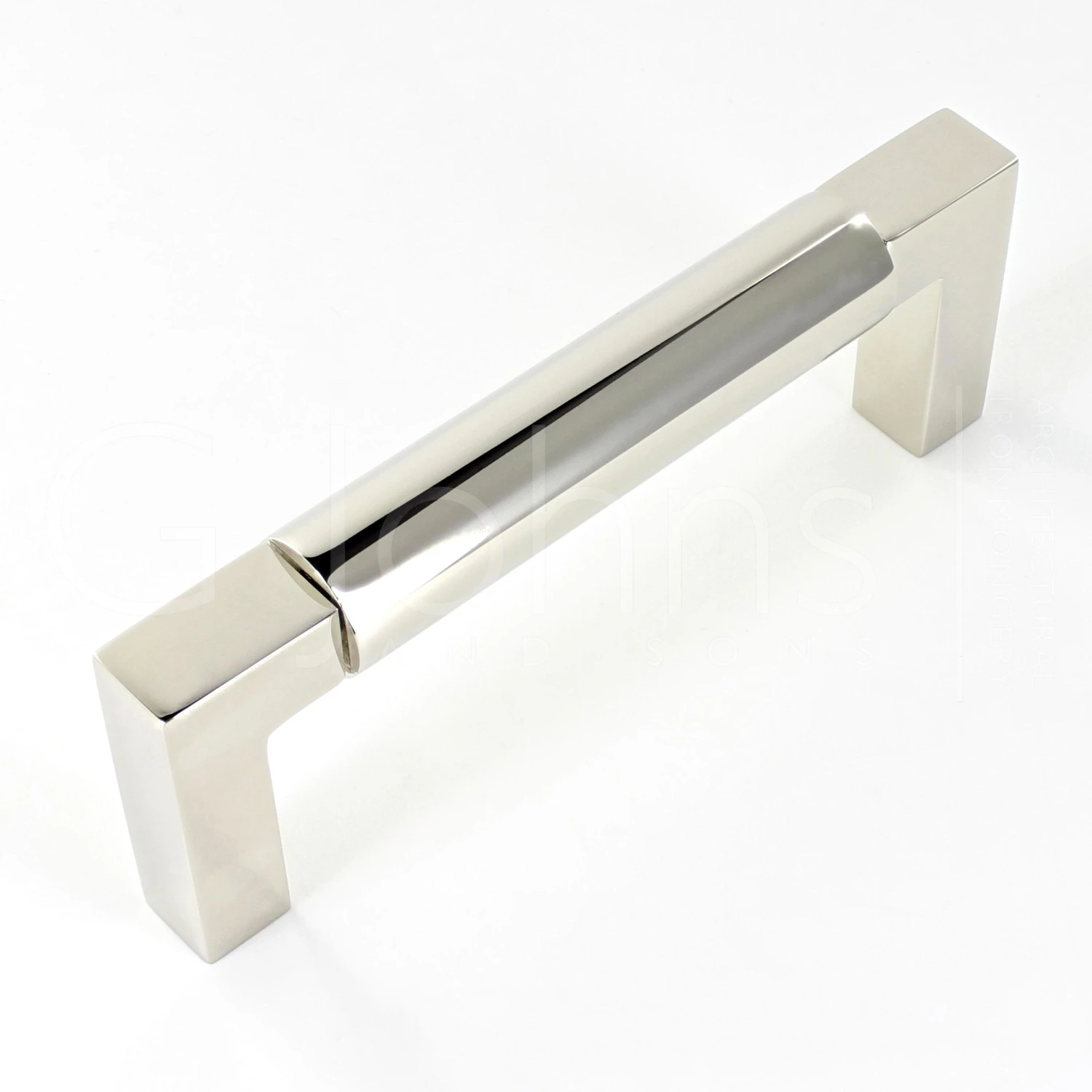

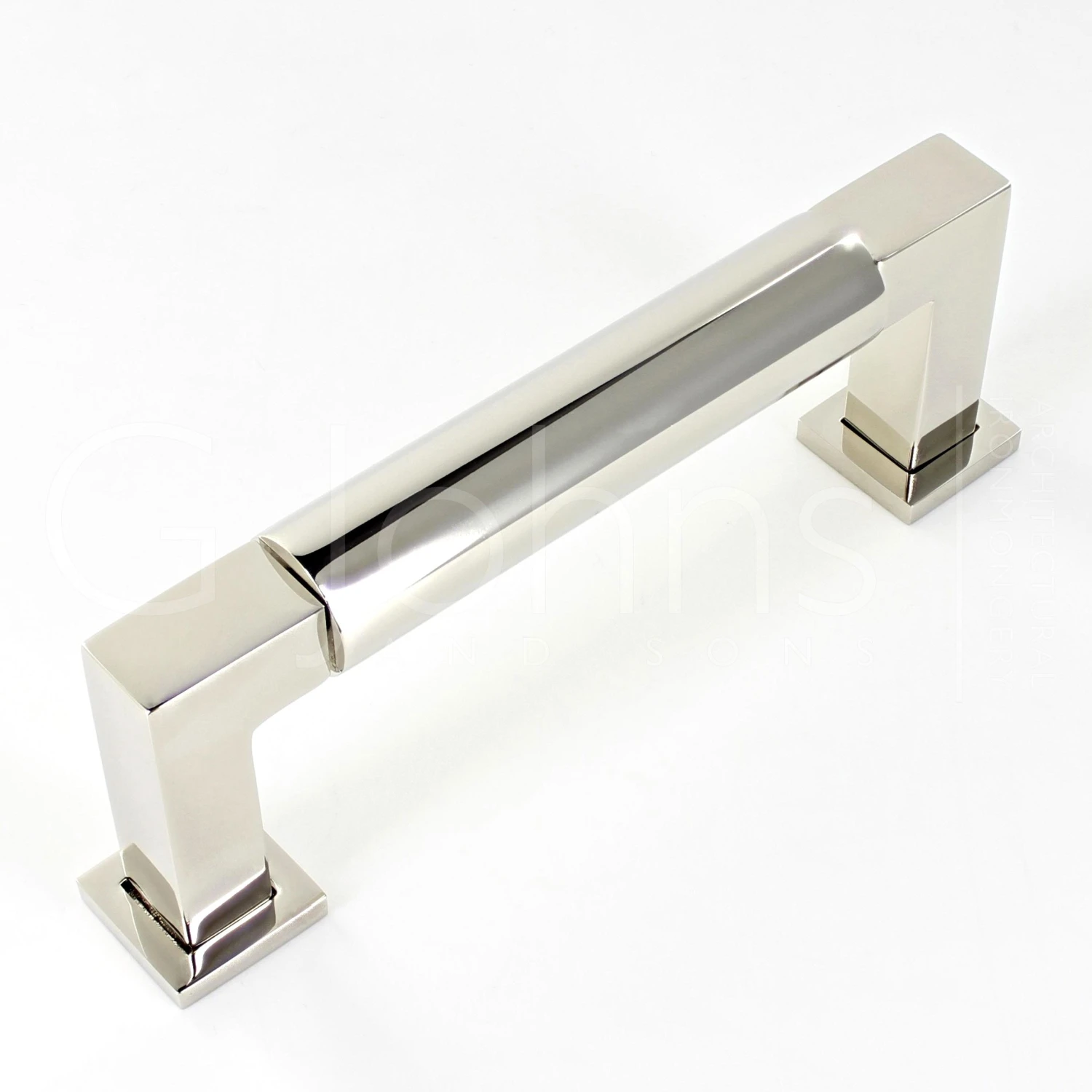

Rectangular Cabinet Pull Handle With Rounded Grip With Optional Base Rose – Polished Nickel

Original price was: $30.20.Current price is: $21.14.

Rectangular shape cupboard door pull handle with round a grip and optional square base roses

Contemporary design ideal for use on modern units including, kitchen cabinet doors, wardrobes, cupboard doors and drawers

Item code	Overall Length(B)	Fixing Centres	Width(A)	Projection(C) Wth Base Plate	Projection Wthout Base Plate
44681.1	114mm	96mm	15mm	41mm	38mm
44681.2	146mm	128mm	15mm	41mm	38mm
44681.3	242mm	224mm	15mm	41mm	38mm

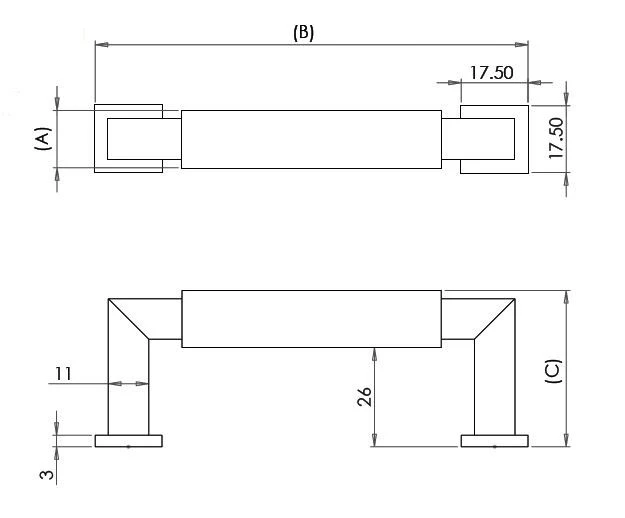

Tubular-Cabinet-Pull-Handle-With-Square-Section-Ends-Dimensions-Diagram

This handle is fitted via M4 bolts from the rear of the door / drawer – see below diagram.

Diagram-Showing How A Cabinet Handle Bolts Through A Door / Drawer

Bolt through fixings provide a superior strong fixing allowing this handle to be fitted to tall or heavy doors

Comes supplied with M4 (diameter) x 25mm & 45mm (long) bolts, the 25mm long bolts are to suit 18mm cupboards and the 45mm designed to be cut down to length on site for thicker doors

For doors thicker then 18mm, longer M4 fixing bolts are available to buy separately

Item	44681
Item Code	44681
Finish	Polished Nickel
Dimensions	Available In Three Lengths
Sold Per	Each
Availability	Non stock product – please allow 3-7 days for delivery
