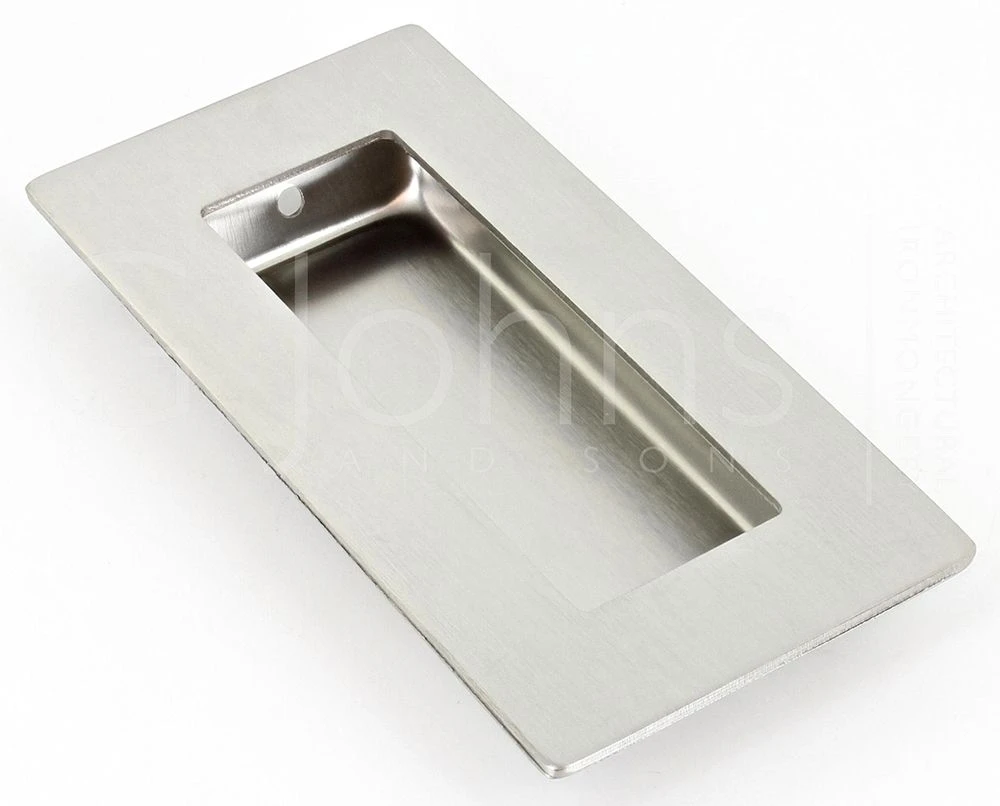

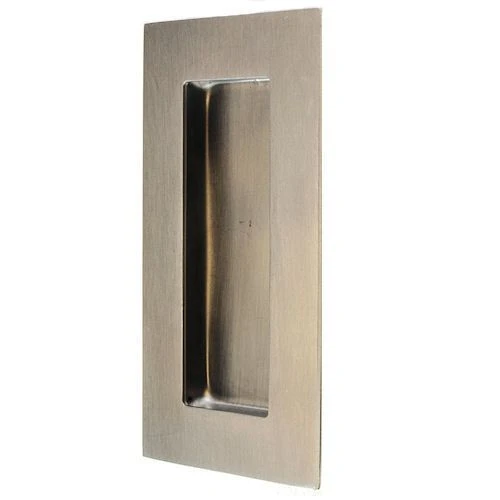

Rectangular Design Flush Pull Handle – Tested For Use On FD30 Fire Doors – 100mm X 50mm – Satin Stainless Steel

• Contemporary design rectangular shape flush fitting, inset pull handle for sliding doors.



• Made from stainless steel this item is a satin (brushed) finish.

• This item has to be morticed (cut) into the door to allow it to sit fit flush.



• Suitable for use on full height sliding doors, wardrobe doors and cupboard doors.



• Sleek minimal look thanks to discreet fixings. – (This item is fixed via wood screws from inside the recess.)



• Available in one size only – 100mm x 50mm



• Test for use on FD30 timber fire doors (please check test evidence of your fire door for compatibility).



Size Details

Item Code	Height	Width	Recess Depth	Recess Height	Recess Width	Backplate Thickness
20656.1	100mm	50mm	9mm	80mm	38mm	2mm

Base Material

• Made from stainless steel.

Finish Details

• Satin stainless steel – a grey colour with very slight golden undertones. The raw stainless steel has been satinised “brushed” to produce visible brush marks in the surface of the item.
• For more information and how to care for this finish please see our guide to product Finish.

Alternative Finishes Available

• Polished stainless steel – (Shiny finish)

Fixings

• This handle is fitted via 2 x wood screws inside the recess of the handle.
• Screws are supplied with this item.

Usage

• Suitable for internal or external use.

externaluse.

• To fit this handle completely flush a minimum door thickness of 18mm is required.

Unit Of Sale

• This item is sold individually – (Each)
