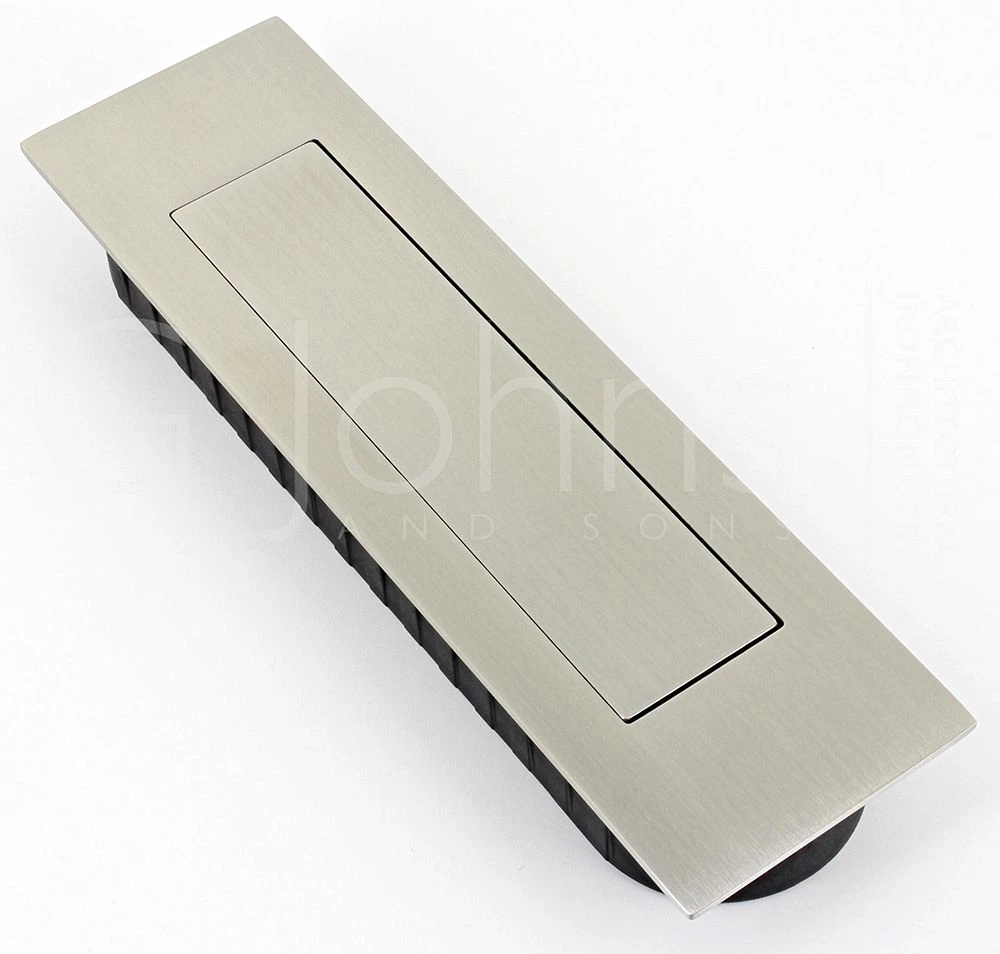

Rectangular Shape Sliding Door Flush Handle For Sliding Doors With Spring Cover – Satin Stainless Steel

“

• Designer rectangular shape flush fitting sliding door handle with spring loaded cover plate.

• Front cover plate has a unique “”floating”” spring design which allows the user to gently push it inwards at any position.

• This inset handle measures 155mm long x 45mm wide.

• Please note this handle has no lipping around the opening and cannot be used to pull a door open, making it only suitable for use on sliding doors.

• Made from stainless steel this item is a satin (brushed) finish.

• This item has to be morticed (cut) into the door to allow it to sit fit flush.

• Suitable for use on full height sliding doors, wardrobe doors and cupboard doors.

• Sleek minimal look with no visible fixings. – (this handle is designed to push fit into a cut out).

Size Details

Item Code	Height	Width	Recess Depth	Recess Height	Recess Width	Backplate Thickness
40917.1	155mm	45mm	17mm	150mm	39mm	2mm

Base Material

• Made from stainless steel.

Finish Details

• Satin stainless steel – a grey colour with very slight golden undertones. The raw stainless steel has been satinised “”brushed”” to produce visible brush marks in the surface of the item.

Fixings

• This handle is designed to push fit into a 150mm x 39mm hole.

Usage

• Suitable for internal use.

• To fit this handle completely flush a minimum door thickness of 25mm is required.

Unit Of Sale

• This item is sold individually – (Each)

”
