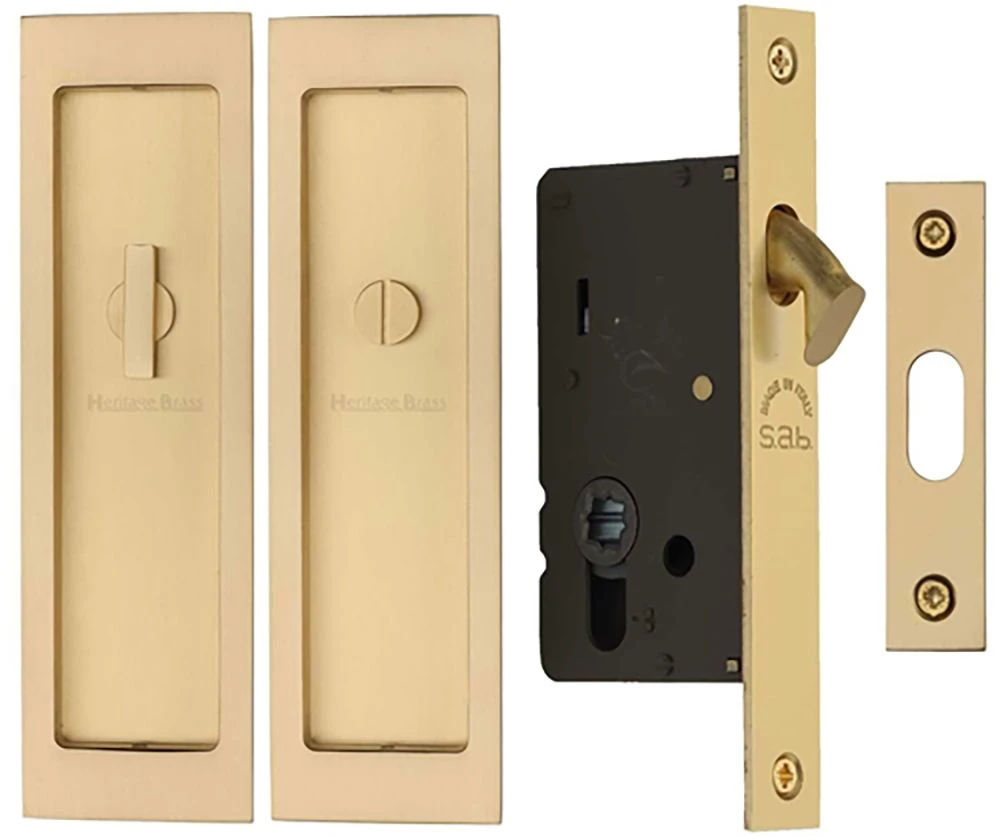

Rectangular Turn & Turn Hook Lock For Sliding Pocket Doors – 197mm X 57mm – Satin Brass (Lacquered)

• Satin Brass finish flush fitting bathroom rectangular turn & release handle set for sliding pocket doors.

• Ideal for use on sliding bathroom and toilet doors.

• The thumb-turn is fitted to the inside of the sliding door which allows the door to be locked and unlocked.

• The release part of the lock is fitted on the outside of the sliding door and allows the door to be unlocked in an emergency by using a coin of screw driver.
• Suitable for use on doors between 35mm to 45mm thick.
• Supplied with a bathroom hook lock

Finish

• Satin Brass

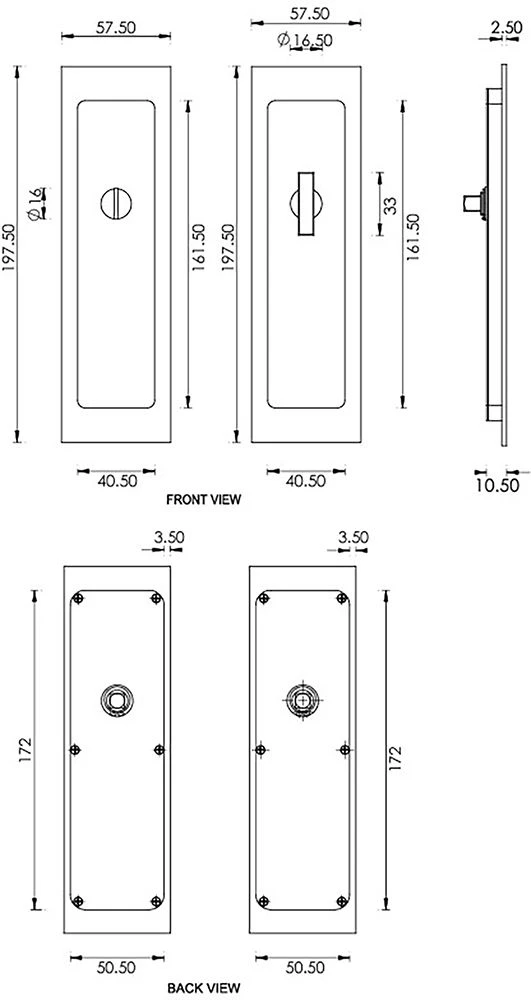

Dimensions

• Turn & Release – 197.5mm x 57.5mm
• 10.5mm depth

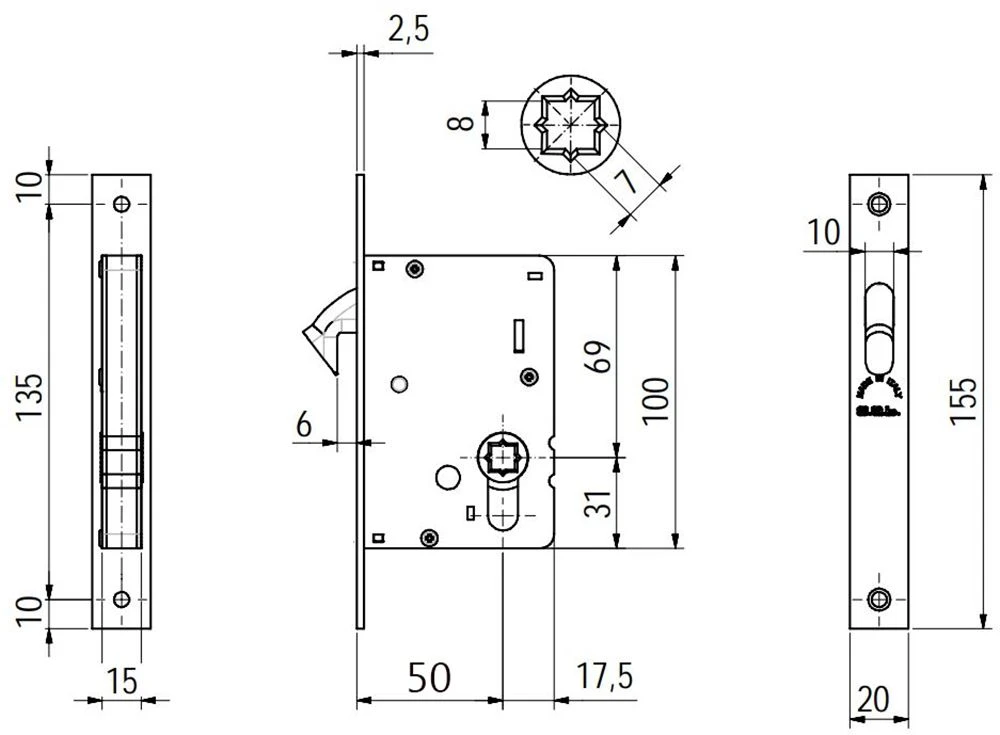

• Lock Case – 57.7mm deep
• Backset – 50mm
• Case Depth – 67.5mm

Fixings

• Press fit
• A small hole on the inside edge to allow a small nail for a discrete look

Usage

• Suitable for internal use

Unit Of Sale

• This item is sold as a set (1 x Rectangular Turn Handle, 1 x Rectangular Coin Release handle, and 1 x Bathroom Hook Lock Set)
• Sold with fixings
