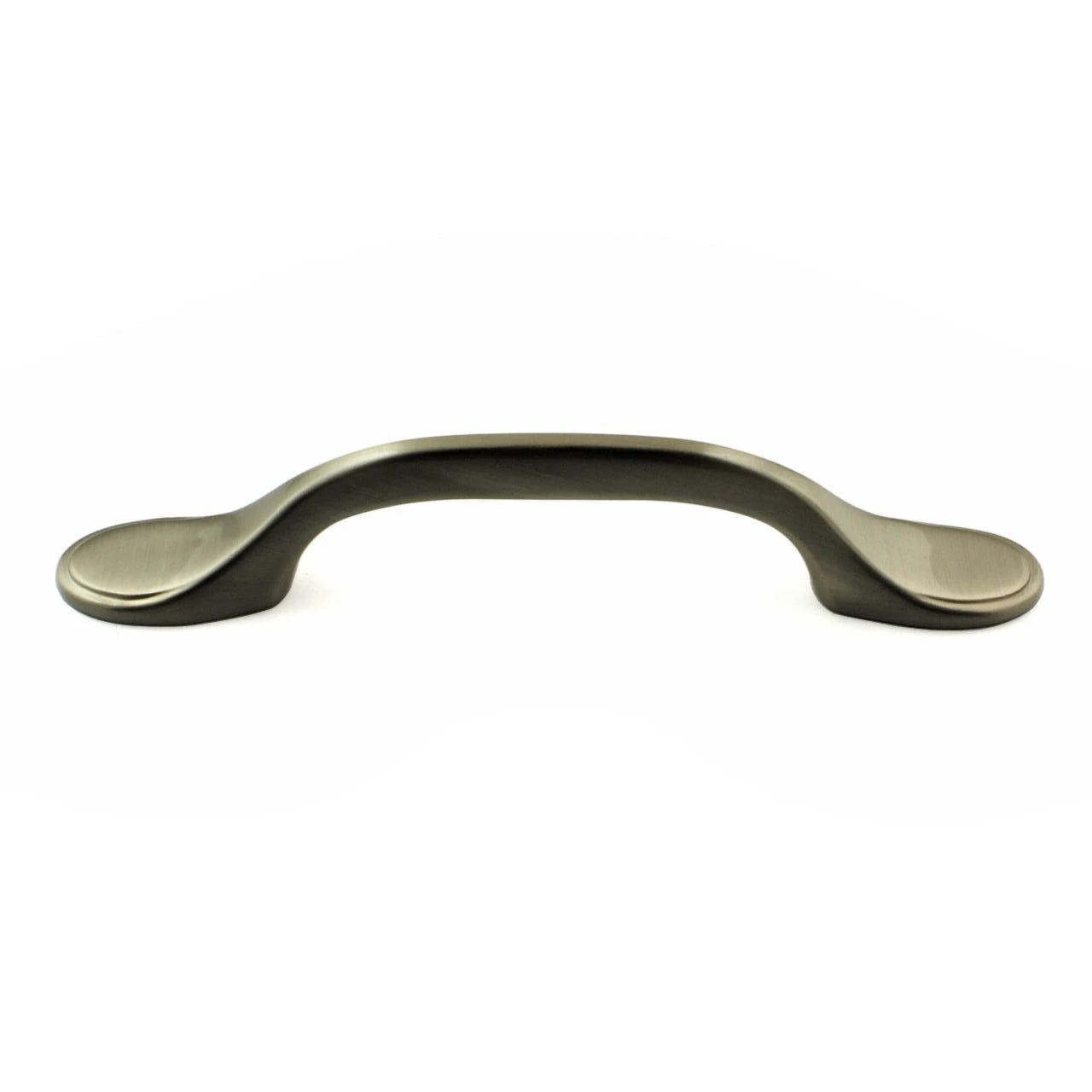

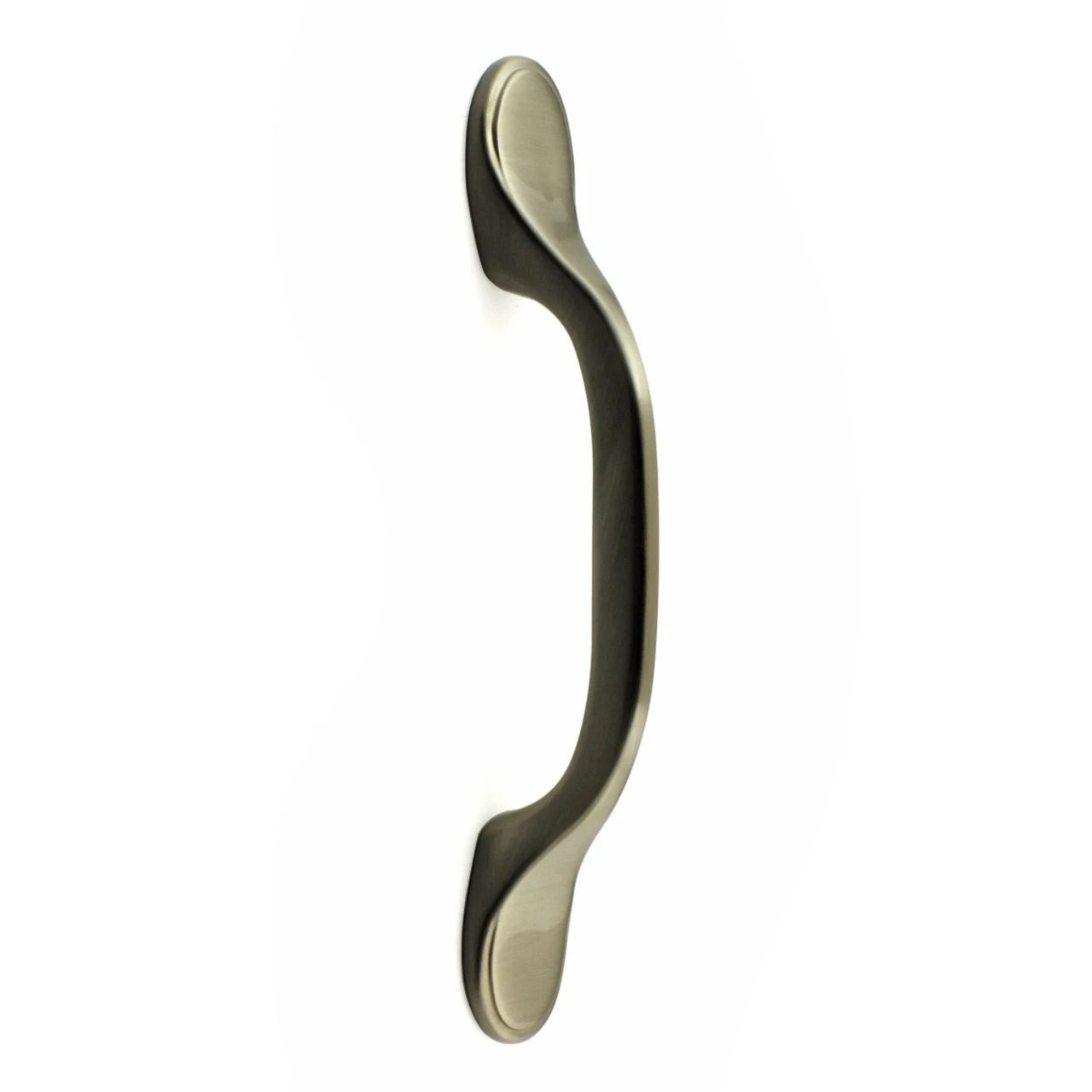

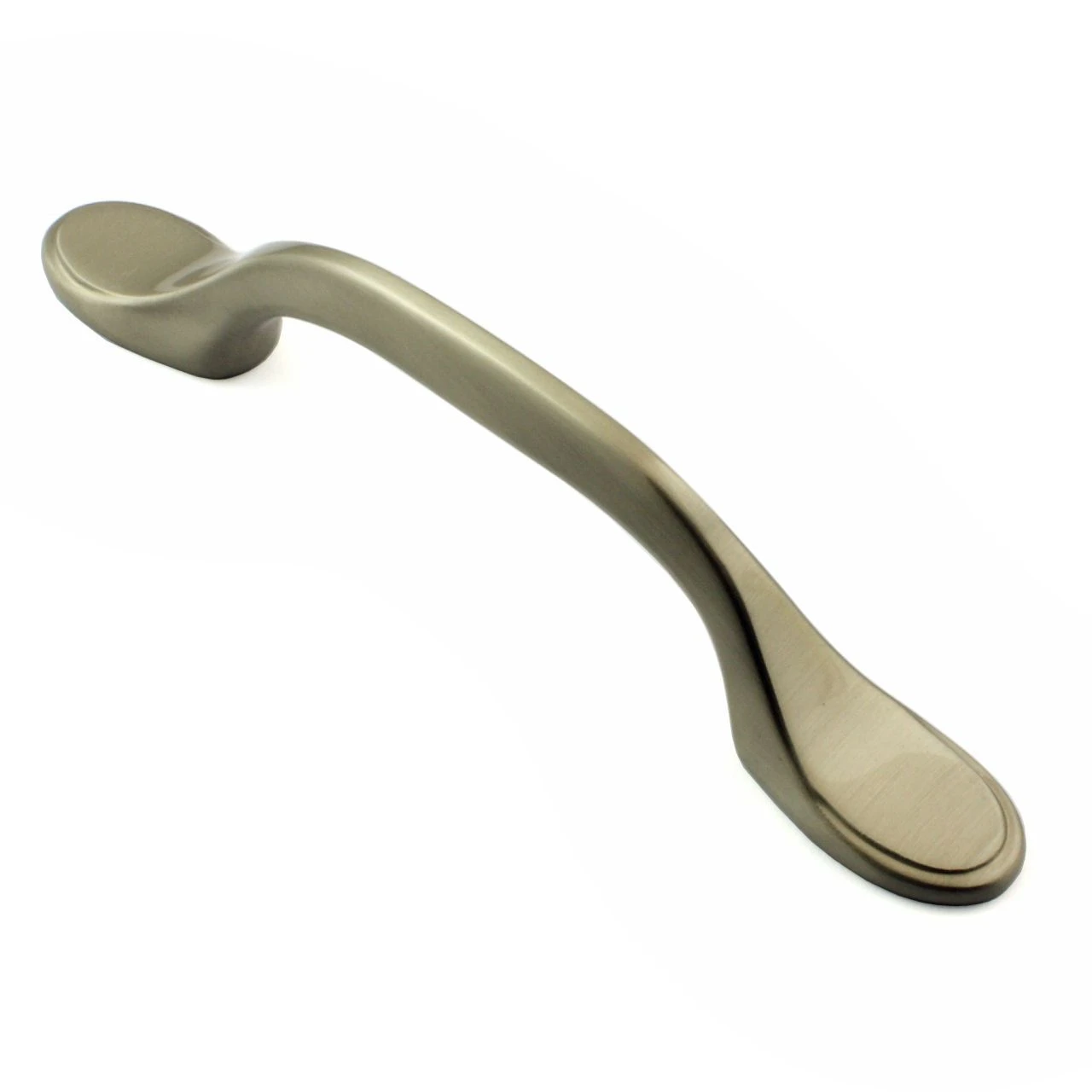

Shaker Style Cabinet Pull Handle – 128mm Long – Satin Nickel

• 30286.1 –  shaker style cabinet handle.

• Slim, sleek design handle ideal for use on shaker style kitchen cabinet doors.

• Satin nickel (brushed finish.) – Satin nickel is a very close match to satin stainless steel ideal for use on kitchen cupboard doors.

• Available in one length – 128mm long.

• Comes supplied with M4 fixing bolts.

• Suitable for use on kitchen cabinet doors, wardrobes, cupboard doors and drawers.

Size Details

Item Code	Bolt centers (A)	Overall Length (B)	Projection (C)	Width (D)
30286.1	76mm	128mm	26mm	6mm

Base Material

• Made from a zinc alloy.

Finish Details

• Satin nickel – a warm grey colour with a very slight golden tint and visible brush marks in the surface of the item.
• Satin nickel is a very close match to satin stainless steel ideal for use in kitchens.
• This item has been lacquered to help protect and maintain the satin nickel finish.

Alternative Finishes Available

• Polished chrome – (shiny finish)
• Satin brass – (brushed dull brass finish.)

Fixings

• This handle is fitted via M4 bolts from the rear of the door / drawer – see below diagram.

• Bolt through fixings provide a superior strong fixing allowing this handle to be fitted to tall or heavy doors.
• Comes supplied with long M4 (diameter) x 62mm (long) bolts designed to be cut down on site.
• To save cutting down bolts you can order the correct size fixing bolts separately. (See related products below.)

Usage

• Suitable for internal use.

• Unit Of Sale

• This cabinet handle is sold individually – (Each)
