Stella Door Handles – Polished Brass (Lacquered) – Suitable For Use With FD30 / FD60 Fire Doors

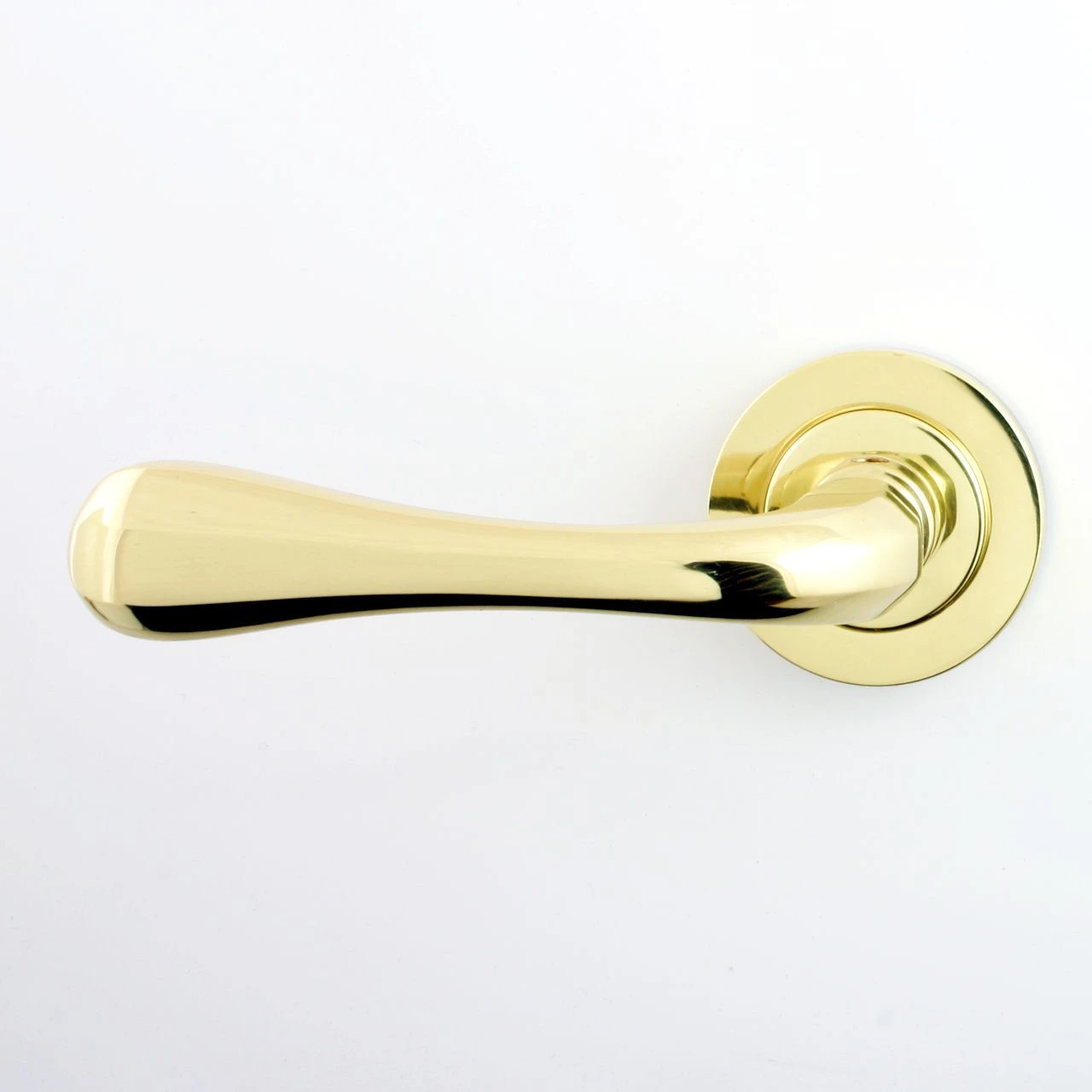

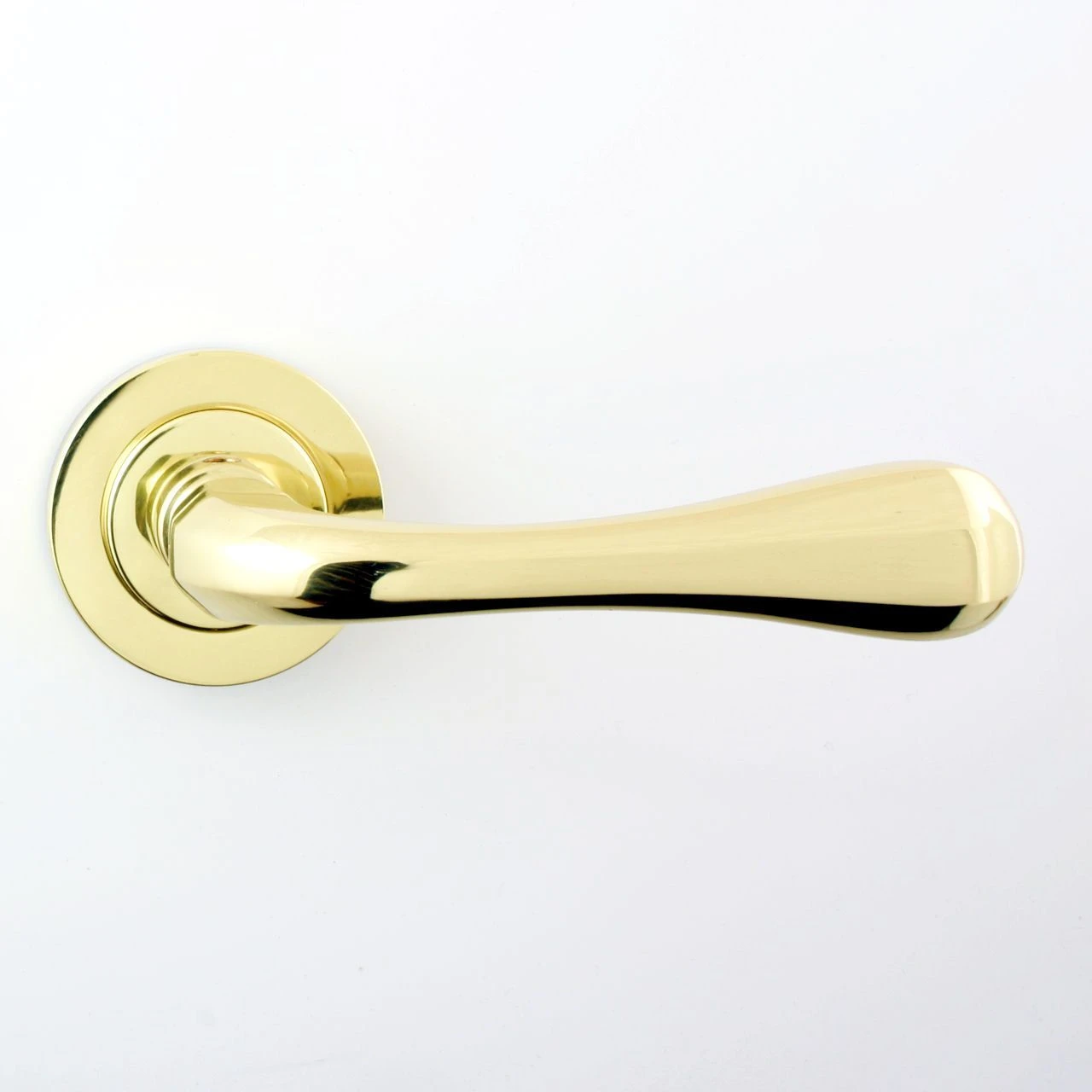

• AQ1PB Stella round rose lever handles from the Carlisle Brass – Designer Door Handle Collection. A classic design lever made from solid brass.

• Made from solid brass this handle is a shiny polished finish.

• Concealed fixings.

• Suitable for residential use.

• Matching polished brass accessories available including Standard escutcheons (keyhole covers), Euro profile escutcheons and a bathroom turn & release set.

How To Order Lever Handles With A Rose

• For Non-Locking Doors – 1 x (Pair) Lever Handles Only

• For Locking Doors – 1 x (Pair) Lever Handles Only + 2 x (Each) Standard Escutcheons

• For Euro Cylinder Locking Doors – 1 x (Pair) Lever Handles Only + 2 x (Each) Euro Escutcheons

• For Locking Bathroom Doors – 1 x Pair Lever Handles Only + 1 x (Set) Turn & Emergency Release

Matching Accessories

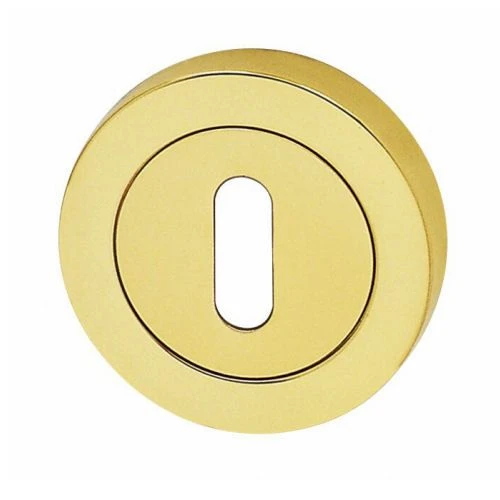

• Standard escutcheon – (key hole cover to suit regular “chubb style locks”)

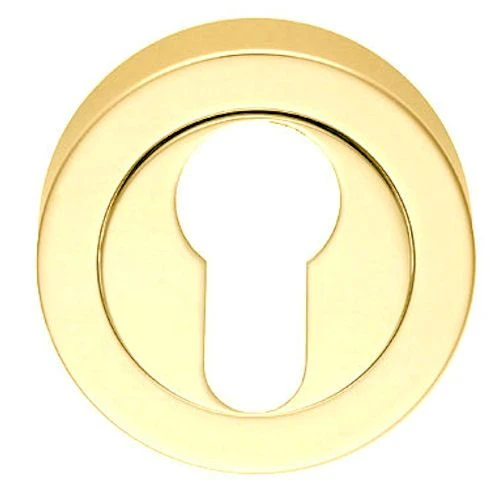

• Euro profile escutcheon – (key hole cover to suit euro profile cylinders)

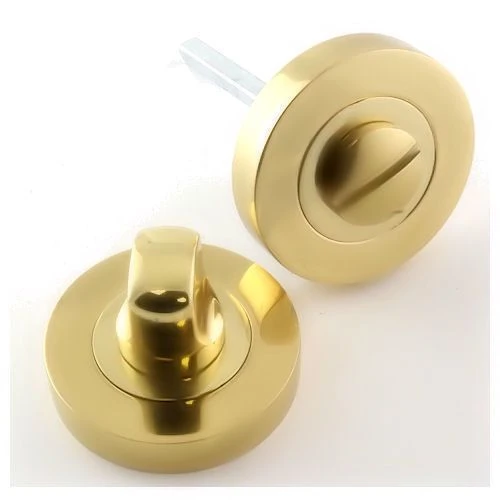

• Turn & emergency release – (a thumbturn used to lock bathroom doors, WC’s and toilet doors)


Base Material

• Made from solid brass

Finish Details

• Polished brass
• Highly polished shiny brass with a protective lacquer coating to help protect and maintain the finish.

Alternative Finishes Available

• Polished chrome
• Satin chrome

Operation

• Both levers are sprung to ensure the lever always returns to its starting position

Size Information

• Rose Diameter – 50mm
• Rose Thickness – 10mm
• Lever Length – 110mm

Spindle Size

• 8mm x 8mm square – UK Standard.

Fixings

• Concealed bolt together fixings via male and female bolts.
• Grub screw fixing to spindle for extra strength once fitted to the door.
• Comes supplied with male and female bolt through fixings and 8mm spindle.

Usage

• Suitable for residential use.
• Suitable for internal or external use.

Unit Of Sale

• Lever handles are sold in pairs. (One pair consists of 1x left hand and 1x right hand.)
• Escutcheons (key hole covers) are sold individually (each.)
• Turn and emergency releases are sold as a set (One set consists of a rose with a thumbturn fitted to the inside of the door and a rose with a coin slot fitted to the outside of the door.)
