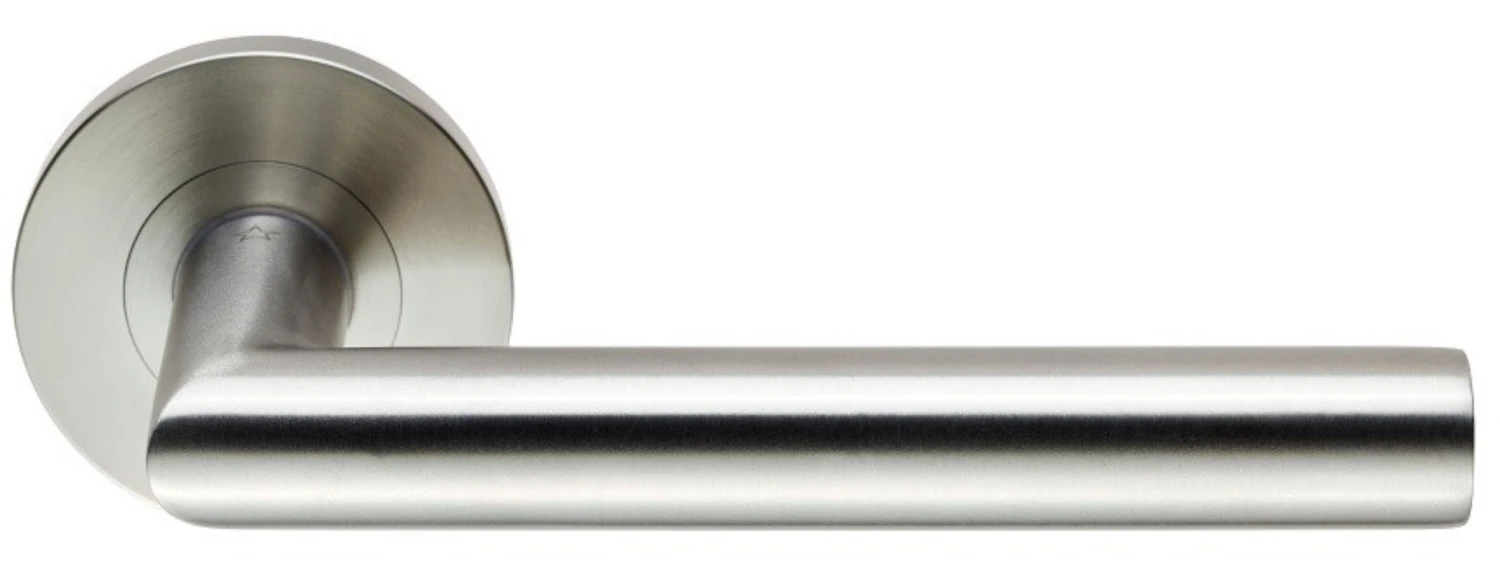

Straight Mitred Design Round Rose Lever Handles Only – Heavy Duty Grade 4 Collection – Satin Stainless Steel (Grade 316) – Pair

• Straight mitred design round rose lever handles.

• Heavy duty commercial range – tested to grade 4.

• Satin stainless steel – grade 316 material.

• Suitable for commercial projects and public buildings,

• Concealed bolt through fixings via screw on rose.

• Tested to BS EN 1906:2012 – classification number 47-1140B – category of use grade 4

• Suitable for use on fire rated doors tested to BS EN 1634

• Matching accessories available including standard escutcheons (keyhole covers) and a bathroom turn & release set.

How To Order Lever Handles With A Rose

• For Non-Locking Doors – 1 x (Pair) Lever Handles Only

• For Locking Doors – 1 x (Pair) Lever Handles Only + 2 x (Each) Standard Escutcheons

• For Euro Cylinder Locking Doors – 1 x (Pair) Lever Handles Only + 2 x (Each) Euro Escutcheons

• For Locking Bathroom Doors – 1 x Pair Lever Handles Only + 1 x (Set) Turn & Emergency Release

Matching Accessories

• Standard escutcheon – (key hole cover to suit regular “chubb style locks”)

• Euro profile escutcheon – (key hole cover to suit euro profile cylinders) –  43507.1

• Turn & emergency release – (a thumbturn used to lock bathroom doors, WC’s and toilet doors) – 43509.1

• Disabled large turn & emergency release – (a thumbturn used to lock bathroom doors, WC’s and toilet doors) – 43510.1

Base Material

• Made from marine grade 316 stainless steel.

• Satin stainless steel.

Operation

• Both levers are sprung to ensure the lever always returns to its starting position.

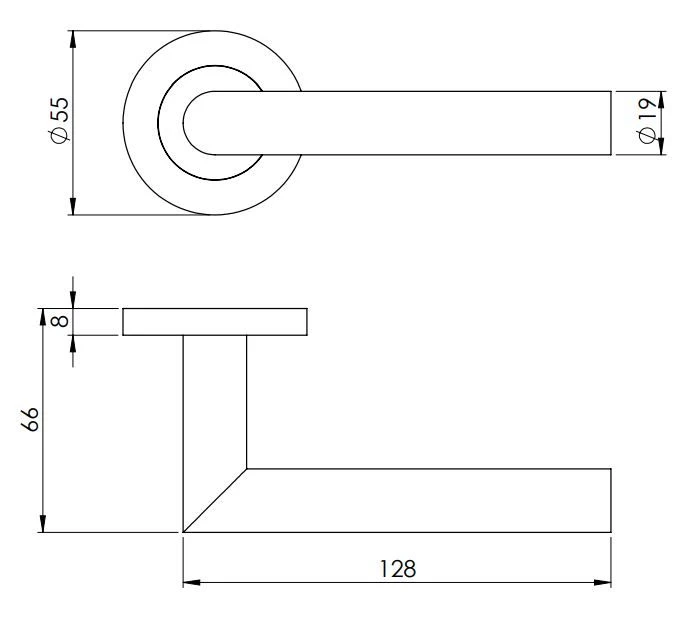

Dimensions

• Rose Diameter – 55mm

• Rose Thickness – 8mm

• Lever Diameter – 19mm

• Lever Length – 128mm



Spindle Size

• 8mm x 8mm square – UK Standard.

Fixings

• Concealed bolt together fixings via male and female bolts.

• Grub screw fixing to spindle for extra strength once fitted to the door.

• Comes supplied with male and female bolt through fixings and 8mm heso fixing spindle.

Usage

• Suitable for heavy duty commercial use.

• Suitable for internal or external use.

Unit Of Sale

• Lever handles are sold in pairs. (One pair consists of 1x left hand and 1x right hand).
