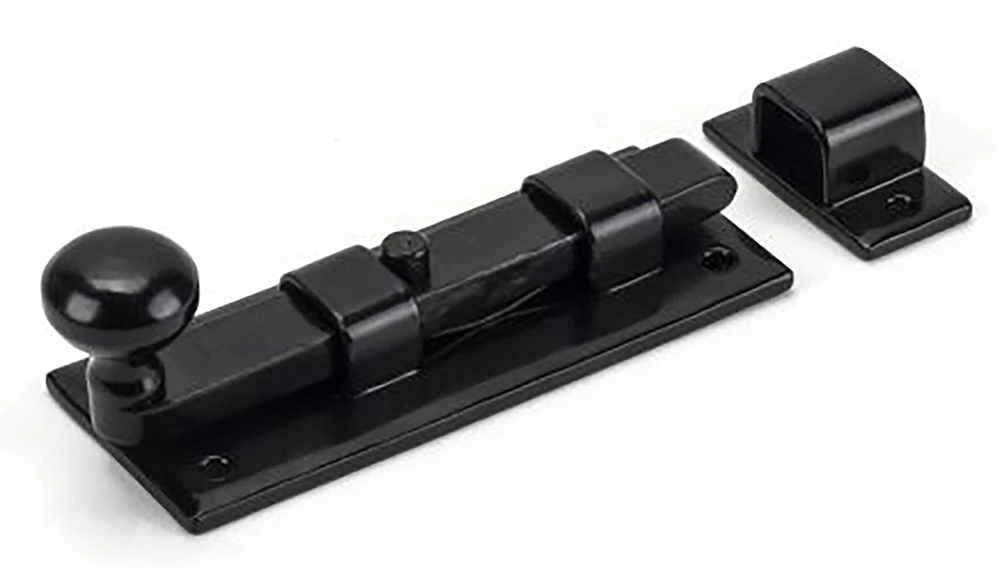

Traditional Pattern Straight Design Door Bolt – Two Sizes Available – Black

• Traditional pattern straight design door bolt
• Can be used horizontally & vertically due to the strong spring mechanism incorporated into the bolts

• Designed for use on French windows (patio doors), front doors, back doors and cupboards

Finish

• Black

Dimensions

• Two sizes available

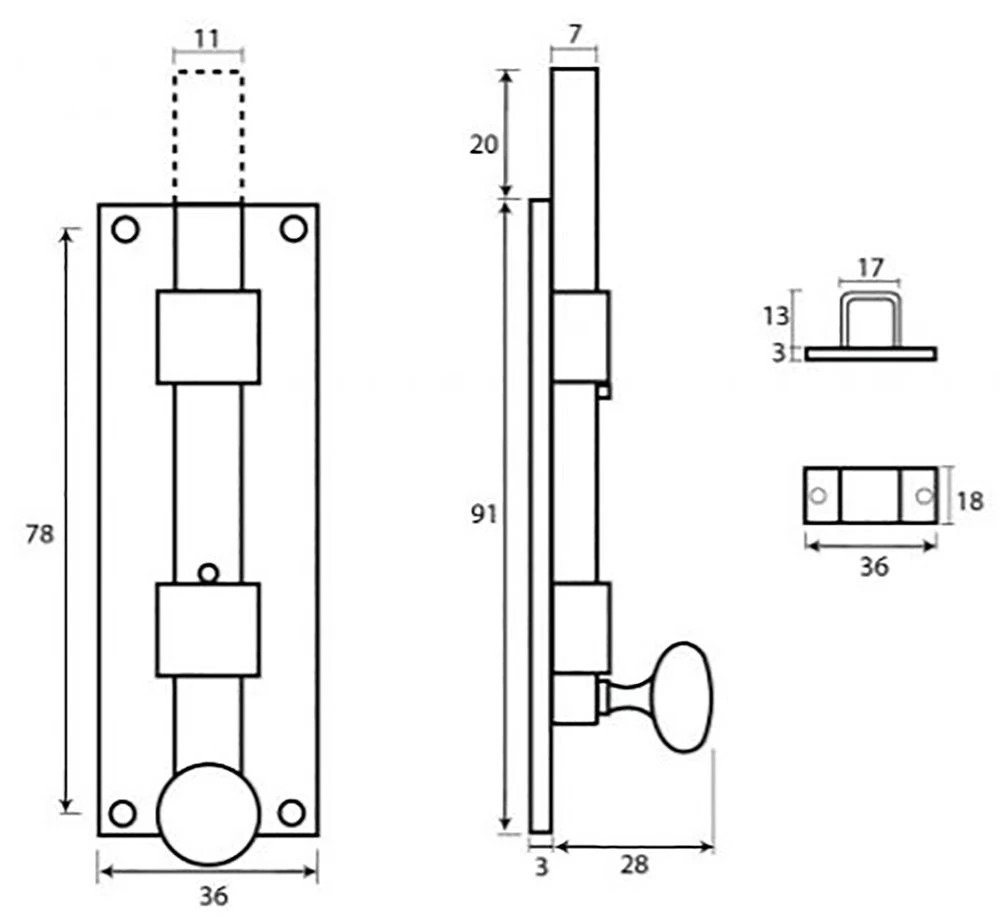

• Fixing Plate: 91mm x 36mm x 3mm
• Receiver Bridge: 36mm x 18mm x 3mm
• Throw: 20mm
• Receiver Bridge Height: 16mm

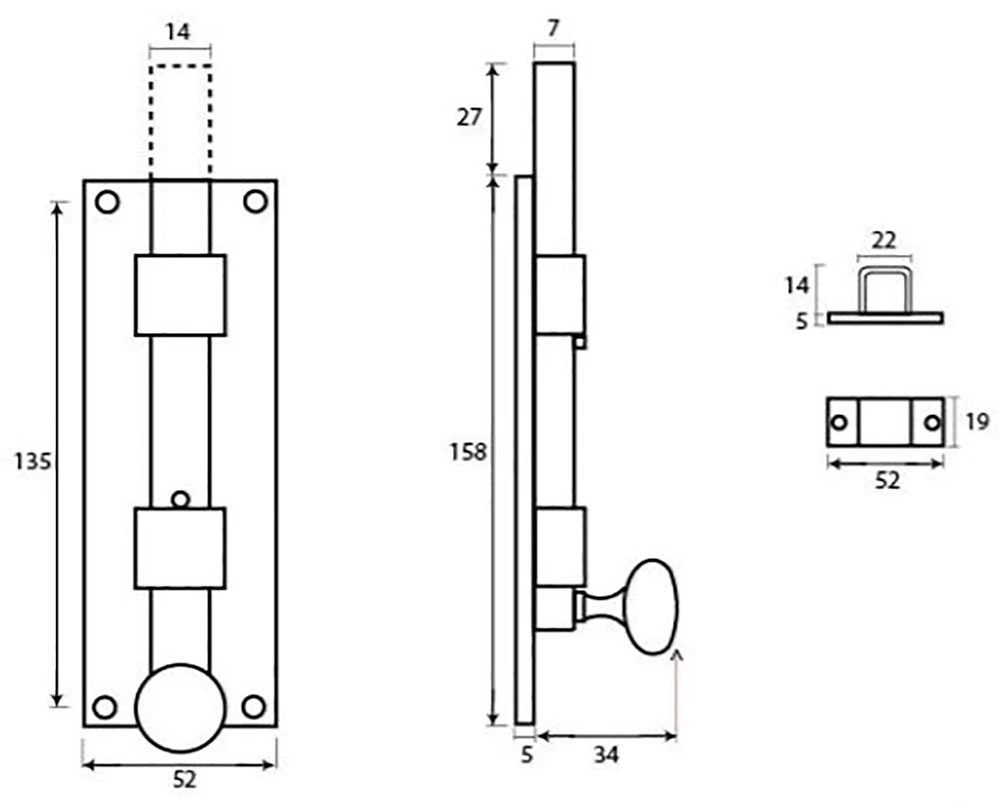

• Fixing Plate: 158mm x 52mm x 5mm
• Receiver Bridge: 52mm x 19mm x 5mm
• Throw: 33mm
• Receiver Bridge Height: 19mm

Important Info Before You Buy

• Sold individually
• Supplied with matching wood screws
