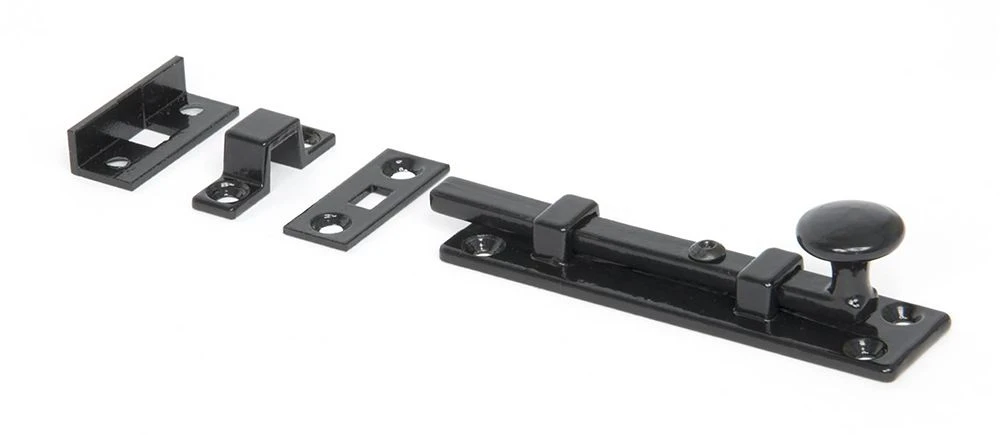

Traditional Pattern Straight Design Universal Door Bolt – Two Sizes Available – Black

• Traditional pattern straight design universal door bolt
• A multi purpose bolt which can be used on windows or doors and in other applications due to a variety of keeps supplied with the product
• Can be used horizontally & vertically due to the strong spring mechanism incorporated into the bolts

• Designed for use on French windows (patio doors), front doors, back doors and cupboards

• Suitable for inward or outward opening door (supplied with 3 x fixing plates)

Finish

• Black

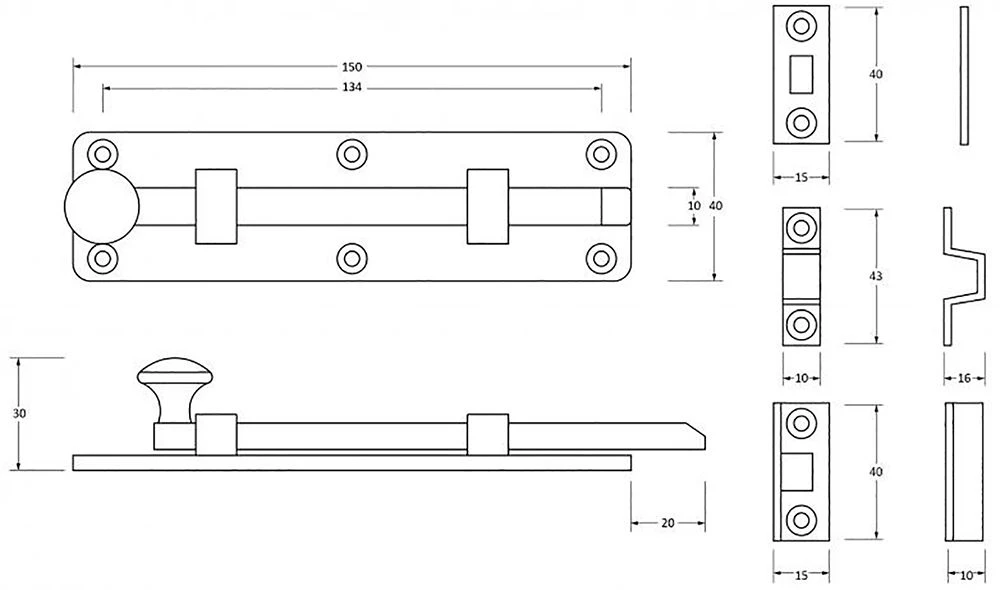

Dimensions

• Two sizes available
• 100mm x 25mm (4″)


• 156mm x 47mm (6″)

• 3 Styles of recievers
• Receiver Plate: 37mm x 15mm x 2mm
• Receiver Bridge: 37mm x 10mm x 3mm (Height:12mm)
• Angled Keep: 37mm x 15mm x 2mm (Depth:10mm)
• Throw: 15mm

Important Info Before You Buy

• Sold individually
• Supplied with matching wood screws
