Traditional Pattern Straight Design Universal Door Bolt - Two Sizes Available - Polished Chrome

Traditional Pattern Straight Design Universal Door Bolt - Two Sizes Available - Polished Chrome - Image 2

Traditional Pattern Straight Design Universal Door Bolt - Two Sizes Available - Polished Chrome - Image 3

Traditional Pattern Straight Design Universal Door Bolt – Two Sizes Available – Polished Chrome

Original price was: $28.70.Current price is: $20.09.

SKU: Z2PVA 49183 Categories: Door Bolts & Slide Bolts, Locks & Latches, Polished Nickel Door Bolts

Sustainable materials, for a better tomorrow.
100% High-Quality Guarantee
Protect Your Information, Shop with Safe Payments
Get the Best for Less

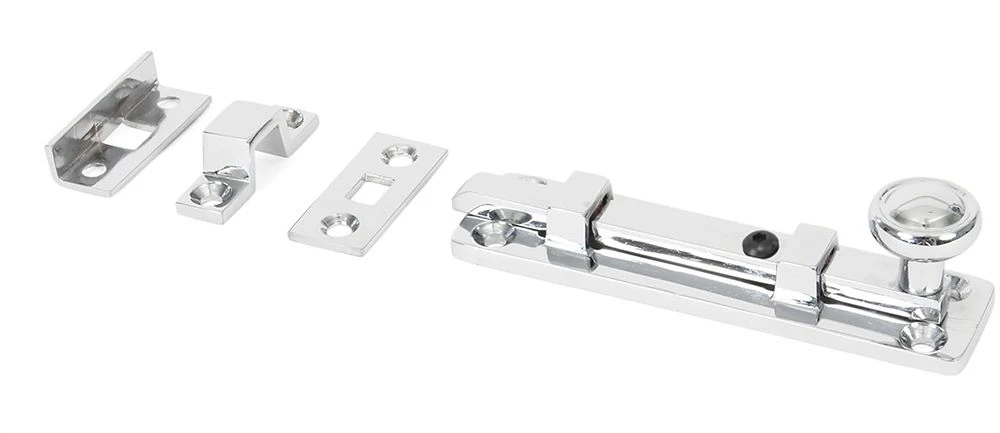

Traditional pattern straight design universal door bolt
A multi purpose bolt which can be used on windows or doors and in other applications due to a variety of keeps supplied with the product
Can be used horizontally & vertically due to the strong spring mechanism incorporated into the bolts

Designed for use on French windows (patio doors), front doors, back doors and cupboards

Suitable for inward or outward opening door (supplied with 3 x fixing plates)

Finish

Polished Chrome

Dimensions

Two sizes available

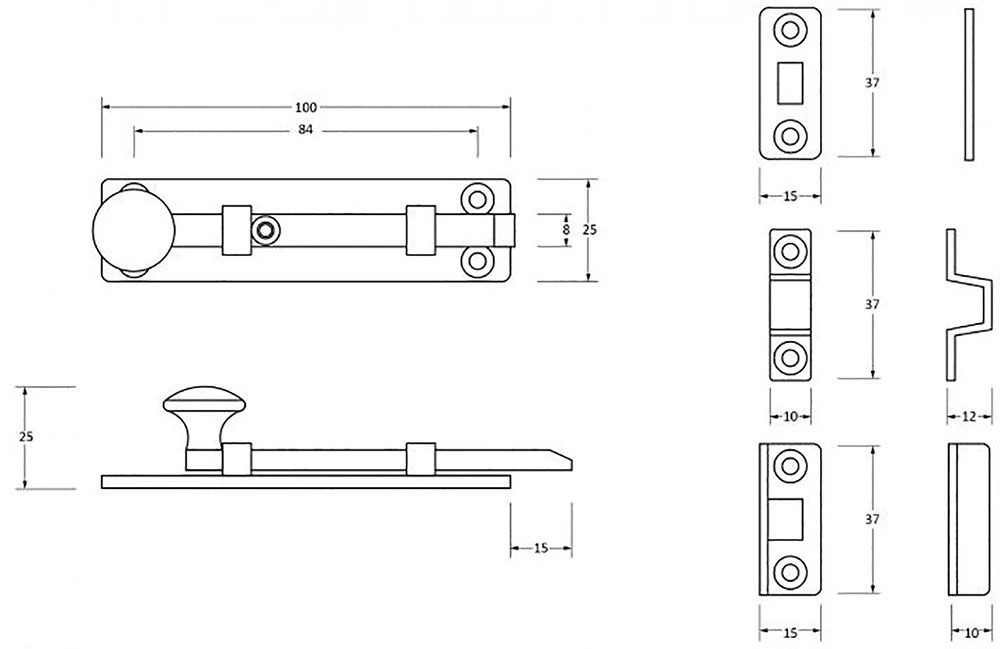

100mm x 25mm (4″)

Traditional-Pattern-Straight-Design-Universal-Door-Bolt-4-Inch-Diagram

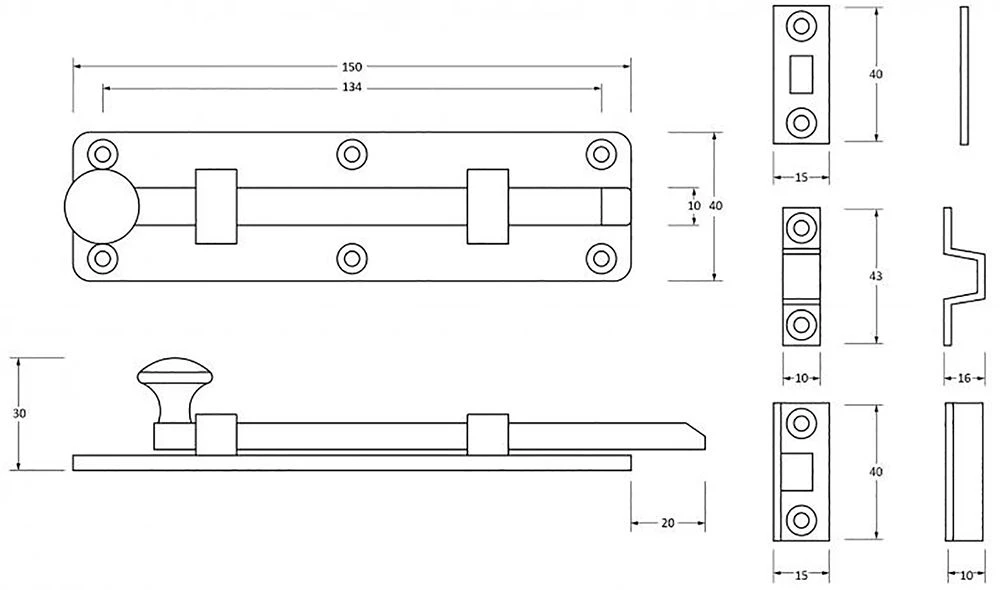

156mm x 47mm (6″)

Traditional-Pattern-Straight-Design-Universal-Door-Bolt-6-Inch-Diagram

3 Styles of recievers
Receiver Plate: 37mm x 15mm x 2mm
Receiver Bridge: 37mm x 10mm x 3mm (Height:12mm)
Angled Keep: 37mm x 15mm x 2mm (Depth:10mm)
Throw: 15mm

Important Info Before You Buy

Sold individually
Supplied with matching wood screws

Item	49183
Item Code	49183
Finish	Polished Chrome
Dimensions	100mm x 25mm (4") & 150mm x 40mm (6")
Sold Per	Each
Availability	Non stock product – Please allow 3-7 days for delivery
