Tubular Lever Door Handles With Square Section Neck On A Minimal Rectangular Backplate – Satin Brass (Lacquered)

PLEASE NOTE: MINIMUM DOOR THICKNESS 44mm REQUIRED

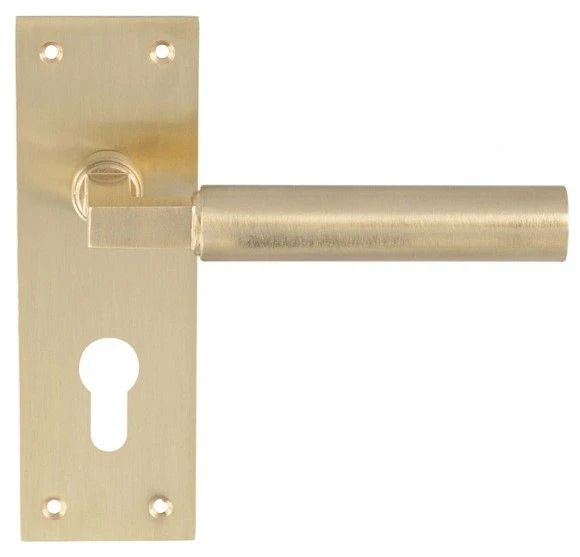

• Tubular lever door handles with square section neck on a minimal rectangular backplate

• Available with or without keyholes or with a turn and emergency release option for bathrooms and WC’s

Plate Styles Available

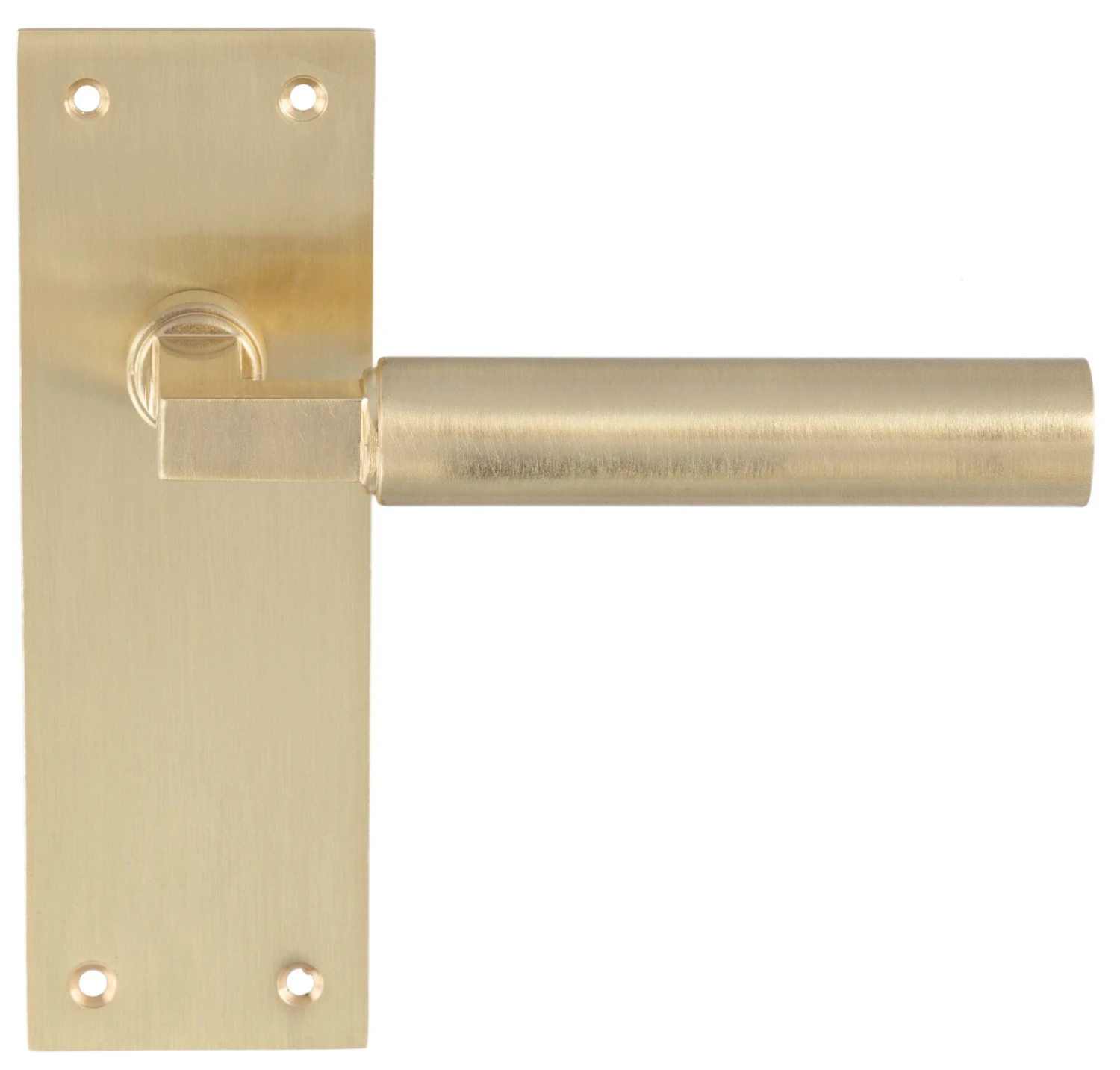

• Lever Latch Set – (Plain Plates)

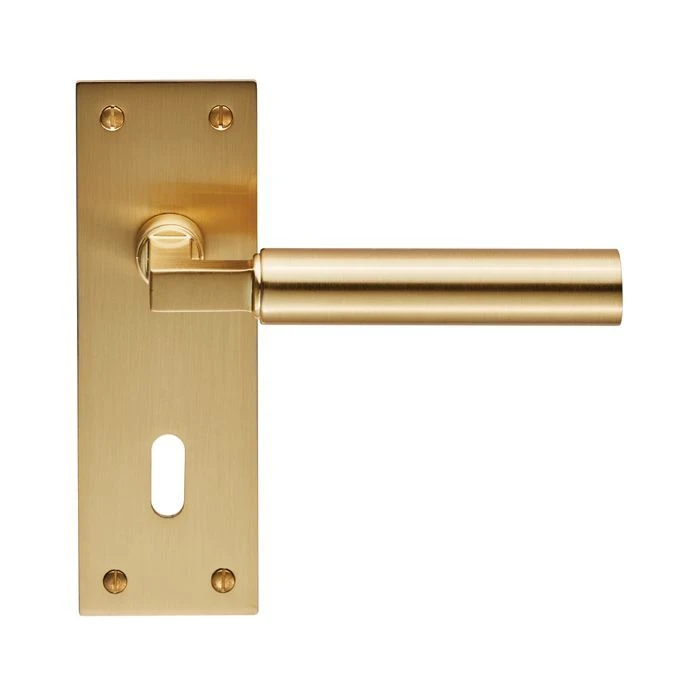

• Lever Lock Set – (Plates With Key Holes)

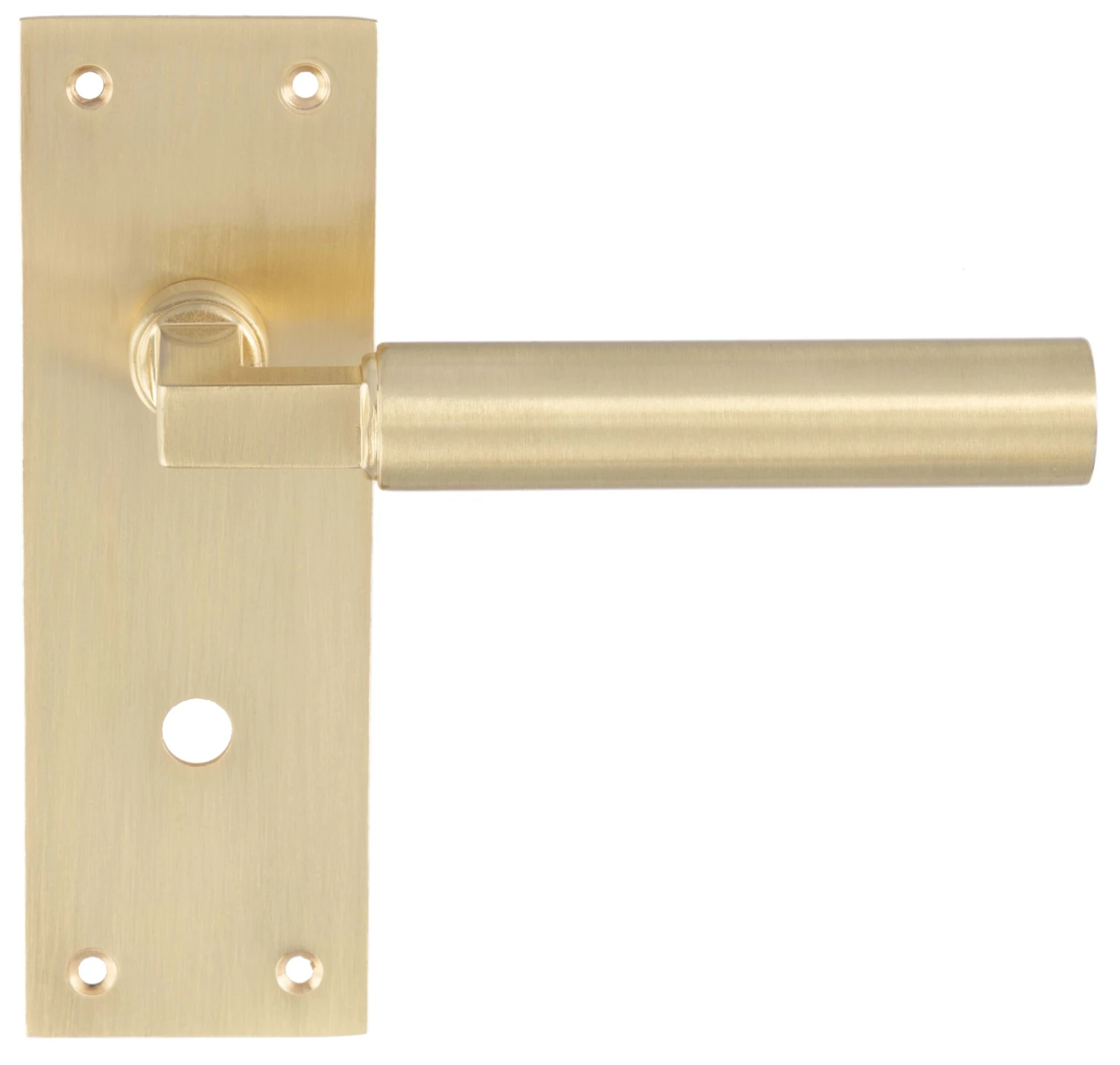

• Bathroom Lever Set – (With Turn & Emergency Release)



Base Material

• Made from solid brass.

Finish Details

• Satin Brass

Operation

• Both levers are sprung to ensure the lever always returns to its starting position

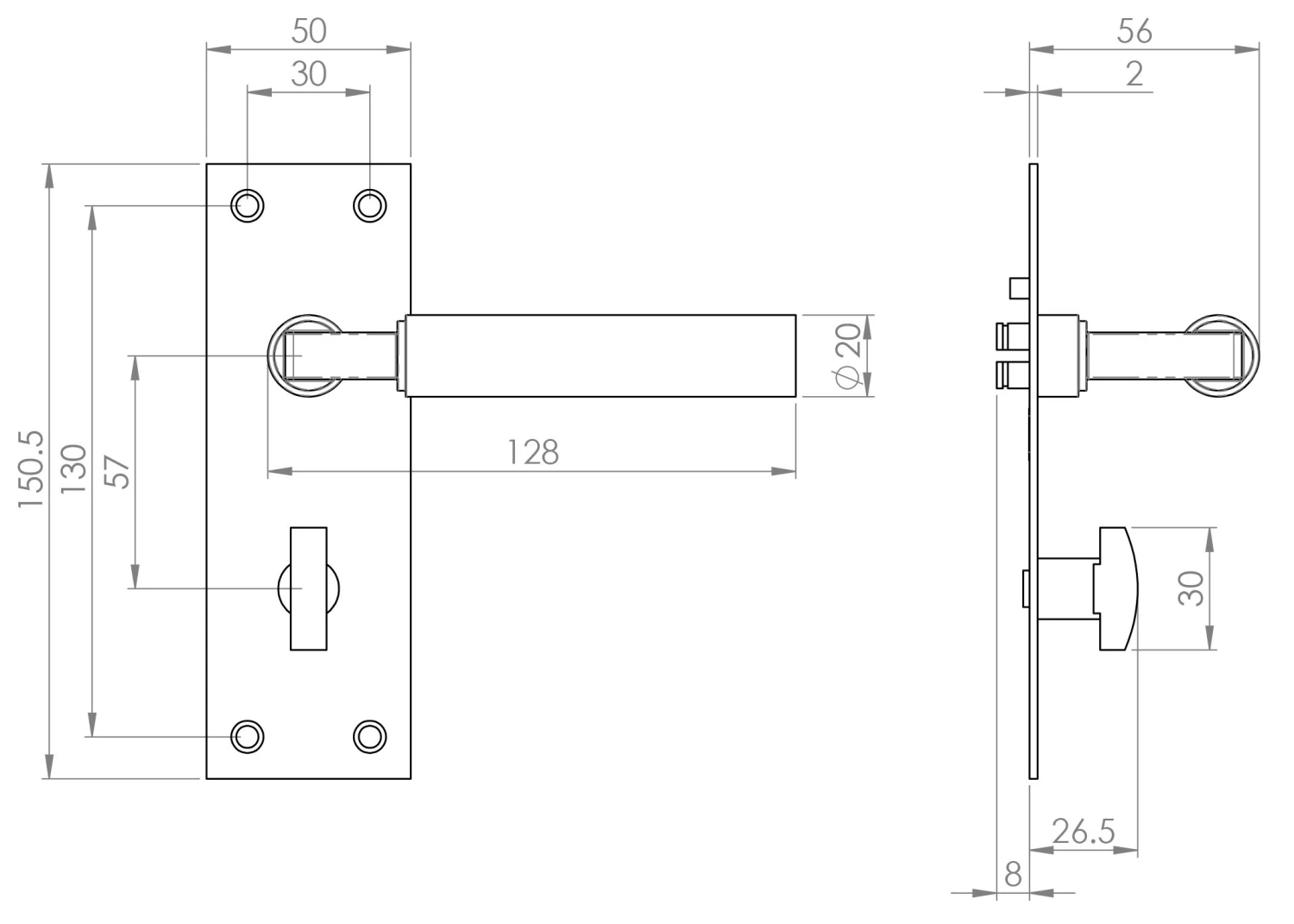

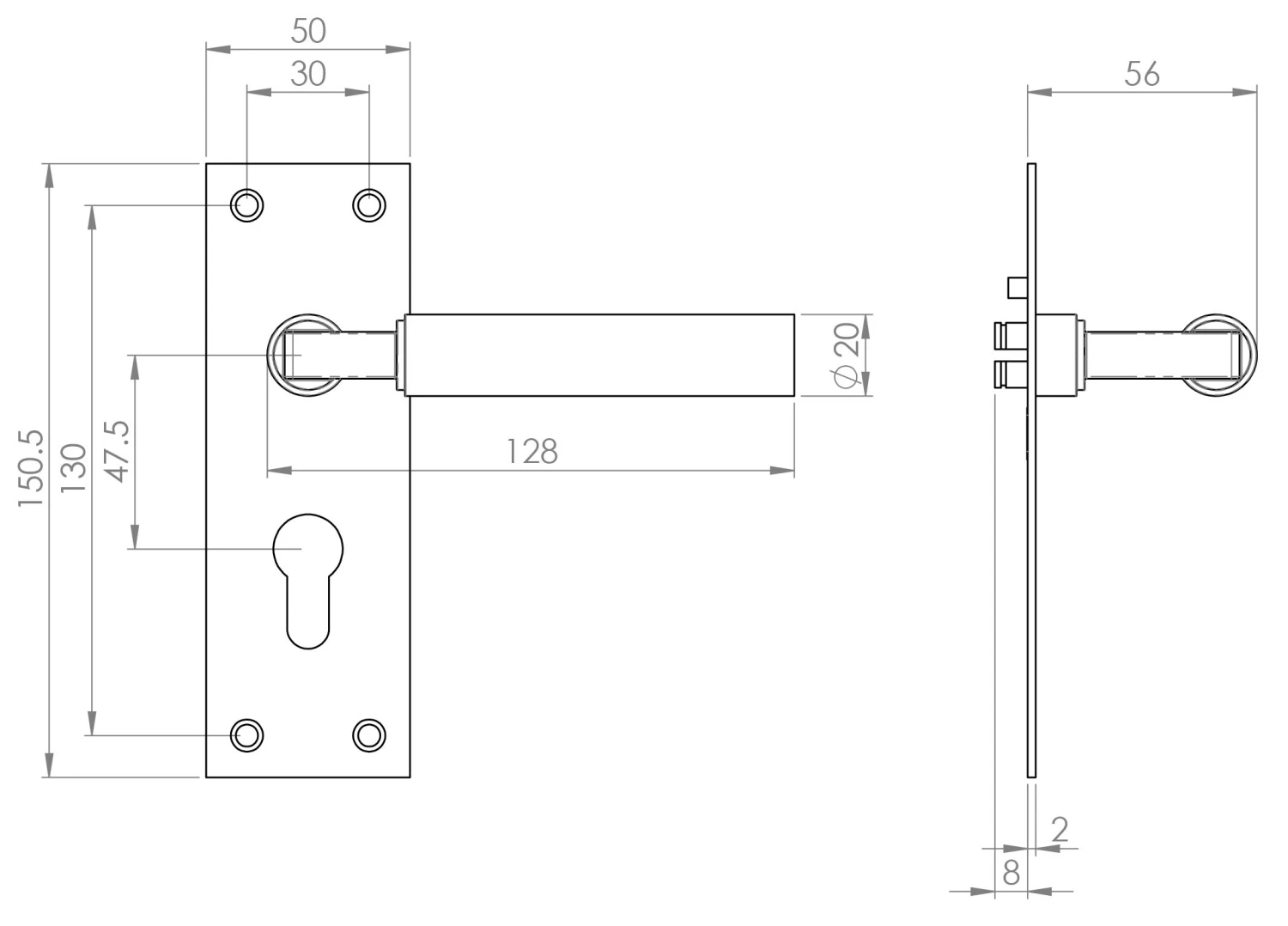

Back Plate Size

• 150.5mm x 50mm

Spindle Size

• 8mm x 8mm square – UK Standard.

Fixings

• Comes supplied with matching wood screws and spindle.

• Grub screw fitting to spindle for extra strength.

Usage

• Suitable for domestic or light commercial use.

• Suitable for internal or external use.

Unit Of Sale

• Sold in pairs

• (One pair consists of 1x left hand and 1x right hand)
