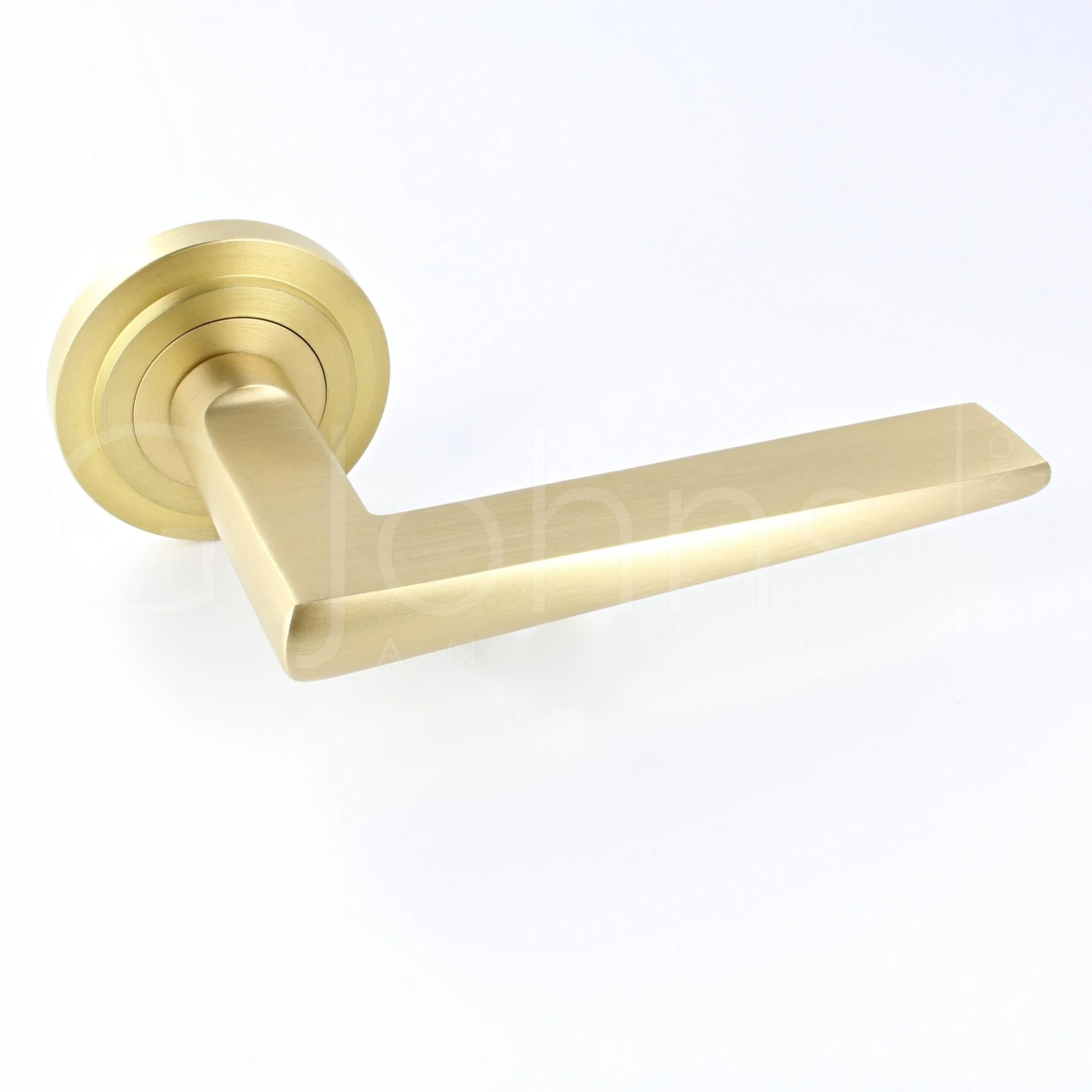

Wedge Pattern Lever Handles With Stepped Round Rose – Suitable For Use With FD30 / FD60 Fire Doors – Satin Brass (Lacquered)

• Satin brass wedge pattern lever handles with stepped pattern concealed fix rose.

• Architectural quality.

• Matching antique brass accessories available including standard escutcheons (keyhole covers), euro profile escutcheons, bathroom turn & release set and locks latches and hinges.

How To Order Lever Handles With A Rose

• For Non-Locking Doors – 1 x (Pair) Lever Handles Only

• For Locking Doors – 1 x (Pair) Lever Handles Only + 2 x (Each) Standard Escutcheons

• For Euro Cylinder Locking Doors – 1 x (Pair) Lever Handles Only + 2 x (Each) Euro Escutcheons

• For Locking Bathroom Doors – 1 x Pair Lever Handles Only + 1 x (Set) Turn & Emergency Release

Matching Accessories

• Standard escutcheon – (key hole cover to suit regular “chubb style locks”)

• Euro profile escutcheon – (key hole cover to suit euro profile cylinders)

• Turn & emergency release – (a thumbturn used to lock bathroom doors, WC’s and toilet doors)

Base Material

• Made from solid brass

Finish Details

• Satin brass finish.

Operation

• Both levers are sprung to ensure the lever always returns to its starting position.

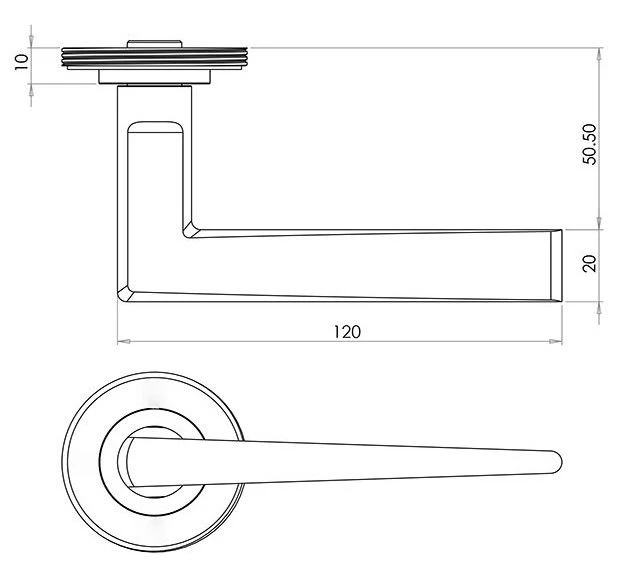

Size Information

• Rose Diameter – 53mm

• Rose Thickness – 10mm

Spindle Size

• 8mm x 8mm square – UK Standard.

Fixings

• Concealed bolt together fixings via male and female bolts.

• Grub screw fixing to spindle for extra strength once fitted to the door.

Usage

• Suitable for residential use.

• Suitable for internal use.

Unit Of Sale

• Lever handles are sold in pairs. (One pair consists of 1x left hand and 1x right hand).
